Produktbeskrivning

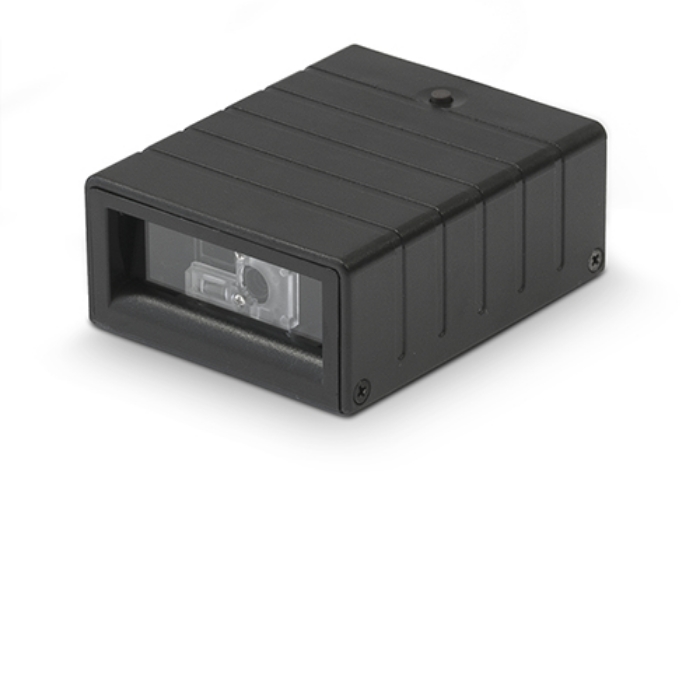

Kiosk Barcode Reader, 1D/2D, White light LED, USB-HID



Viktiga egenskaper

CUSTOM KBR2D-C. Type: Barcode module bar barcode readers, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar.... Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, Housing material: Polycarbonate (PC). Power source type: DC, Input voltage: 5 V, Power consumption: 380 mA. Weight: 106 g, Width: 56 mm, Depth: 69 mm



Teknisk specifikation

Type	Barcode module bar barcode readers
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Han Xin,Micro QR Code,MicroPDF417,PDF417,QR Code
Linear (1D) barcodes supported	Codabar,Code 93,EAN-13,EAN-8,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1 Databar Limited,Industrial 2 of 5,Interleaved 2 of 5,JAN,MSI,Matrix 2 of 5,Plessey,UPC-A,UPC-E
Optical sensor resolution (W x H)	1280 x 800 pixels
Working distance	280 mm
Light levels (direct sunlight)	0 - 100000 lx
Pitch reading angle	5 - 60 °

Connectivity technology	Wired
Standard interfaces	USB

Product colour	Black
Housing material	Polycarbonate (PC)
Buzzer	Yes
Built-in display	No

Power source type	DC
Input voltage	5 V
Power consumption	380 mA

Width	56 mm
Depth	69 mm
Height	28 mm
Weight	106 g

Operating relative humidity (H-H)	20 - 95 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
