Produktbeskrivning

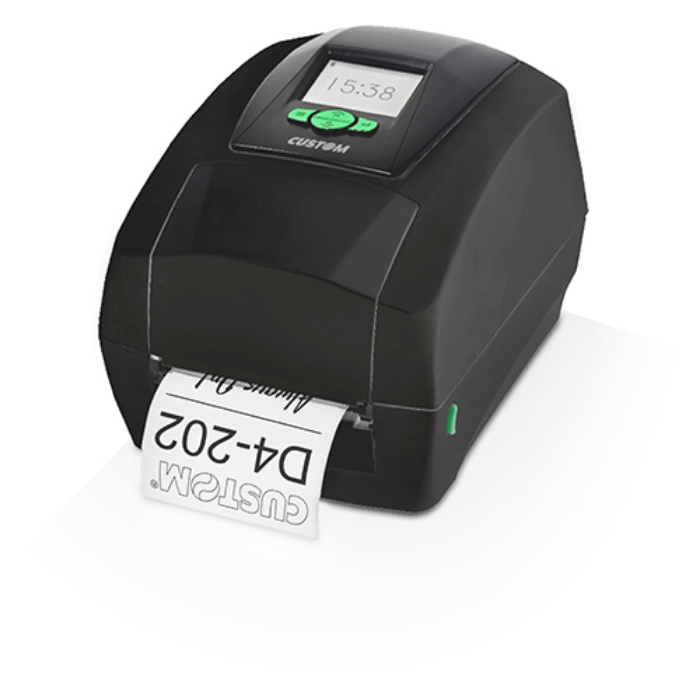

D4 202 is a compact size 4" desktop label printer with a industrial level equipments and high performance. D4 202 is equipped with a colorful backlight LCD with clear image display that makes the menu friendly to users. Multiple communication ports, SD slot for the data storage, real time clock for time and date printing application are some of the main features that makes this label printer ideal for all range of application.
Viktiga egenskaper
CUSTOM D4 202. Print technology: Direct thermal / Thermal transfer, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 0.06 - 0.2 µm, Maximum roll diameter: 12.7 cm, Maximum printing width: 10.4 cm. Connectivity technology: Wired, USB connector: USB Type-A, Standard interfaces: RJ-45, Serial, USB. Ethernet LAN data rates: 10,100 Mbit/s. Built-in barcodes: Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, MaxiCode, PDF417,..., RAM capacity: 0.128 GB
Teknisk specifikation
Printing
| Print technology | Direct thermal / Thermal transfer |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 5 ips |
|---|
Paper handling
| Maximum printing width | 104 mm |
|---|
| Maximum roll diameter | 127 mm |
|---|
| Printing media thickness | 0.06 - 0.2 µm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 2 |
|---|
| USB connector | USB Type-A |
|---|
| Serial interface | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Serial ports quantity | 1 |
|---|
| Standard interfaces | RJ-45,Serial,USB |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
|---|
Features
| Built-in barcodes | Code 11,Code 128 (A/B/C),Code 39,Code 93,Data Matrix,EAN128,EAN13,EAN8,MaxiCode,PDF417,QR Code,UPC-A,UPC-E |
|---|
| RAM capacity | 0.128 GB |
|---|
Design
| Product colour | Black |
|---|
| Built-in display | Yes |
|---|
| Display | LED |
|---|
| Colour display | Yes |
|---|
| Display resolution | 240 x 320 pixels |
|---|
| Display diagonal | 2.8 " |
|---|
Power
| Power source type | AC |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| DC output voltage | 24 V |
|---|
| Input current | 1.8 A |
|---|
Operational conditions
| Storage temperature (T-T) | -20 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 90 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating temperature (T-T) | 5 - 45 °C |
|---|
Weight & dimensions
| Width | 200 mm |
|---|
| Depth | 263 mm |
|---|
| Height | 188 mm |
|---|
| Weight | 2000 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
