Produktbeskrivning

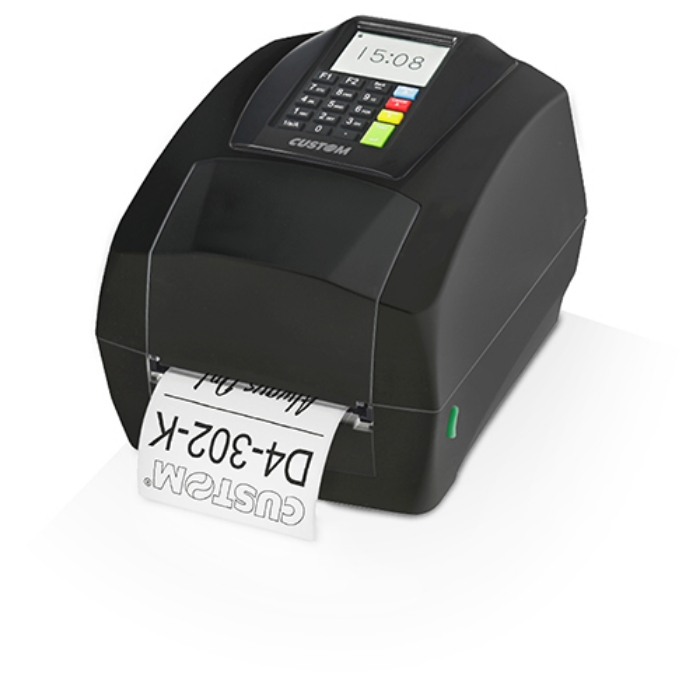

D4 302-K is a compact size 4" desktop label printer with a industrial level equipments and high performance. D4 302-K is equipped with a colorful backlight LCD with clear image display that makes the menu friendly to users and it is also provided with a built in multi functional keyboard, being suitably used in confined space. Multiple communication ports, 19 buttons keyboard, SD slot for the data storage, real time clock for time and date printing application are some of the main features that makes this label printer ideal for all range of application.
Viktiga egenskaper
CUSTOM D4 302-K. Print technology: Direct thermal / Thermal transfer, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 12.7 cm, Maximum printing width: 10.4 cm, Maximum media length: 3.81 m. Connectivity technology: Wired, USB connector: USB Type-A, Standard interfaces: RJ-45, Serial, USB. Ethernet LAN data rates: 10,100 Mbit/s. Built-in barcodes: Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, MaxiCode,..., RAM capacity: 0.128 GB
Teknisk specifikation
Printing
| Print technology | Direct thermal / Thermal transfer |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print speed | 5 ips |
|---|
Paper handling
| Maximum roll diameter | 127 mm |
|---|
| Maximum media length | 3810 mm |
|---|
| Maximum printing width | 104 mm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB connector | USB Type-A |
|---|
| Serial interface | Yes |
|---|
| Standard interfaces | RJ-45,Serial,USB |
|---|
| Serial ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
|---|
Features
| Built-in barcodes | Code 11,Code 128 (A/B/C),Code 39,Code 93,Data Matrix,EAN128,EAN13,EAN8,MaxiCode,MicroPDF417,PDF417,QR Code,UPC-A,UPC-E |
|---|
| RAM capacity | 0.128 GB |
|---|
Design
| Product colour | Black |
|---|
| Built-in display | Yes |
|---|
| Display | LCD |
|---|
| Colour display | Yes |
|---|
| Display resolution | 240 x 320 pixels |
|---|
| Display diagonal | 2.8 " |
|---|
Power
| Power source type | AC |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Input current | 1.8 A |
|---|
| DC output voltage | 24 V |
|---|
Operational conditions
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating temperature (T-T) | 5 - 45 °C |
|---|
| Storage temperature (T-T) | -20 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 90 % |
|---|
Weight & dimensions
| Width | 200 mm |
|---|
| Depth | 263 mm |
|---|
| Height | 188 mm |
|---|
| Weight | 2000 g |
|---|
