Produktbeskrivning

Direct thermal / Thermal transfer, 203 dpi, Ethernet, USB, RS-232, 5 ips, 104 mm, 2.8" LCD



Viktiga egenskaper

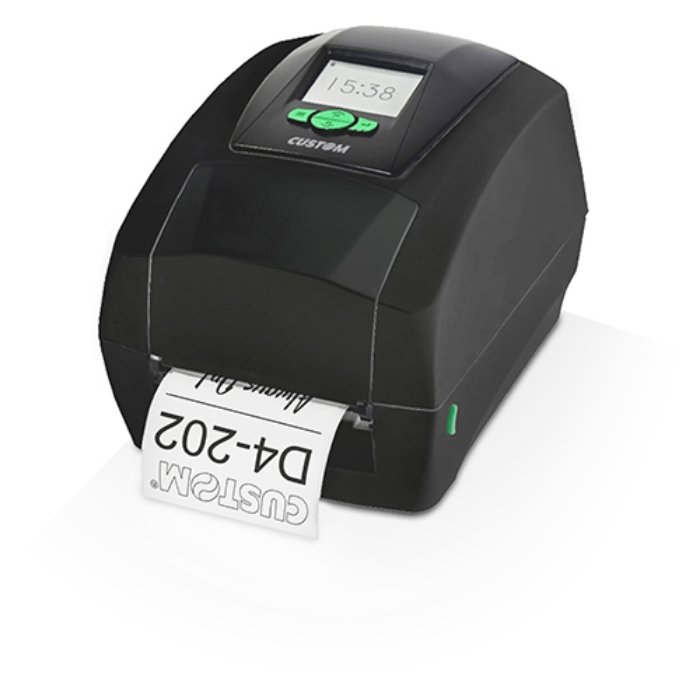

CUSTOM D4 202 ETH. Print technology: Direct thermal / Thermal transfer, Maximum resolution: 203 x 203 DPI. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Black



Teknisk specifikation

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum printing width	104 mm

Ribbon length	100 m
Maximum roll diameter	127 mm
Core diameter	25.4 mm
Maximum label width	110 mm
Media thickness	0.06 - 0.2 mm

Connectivity technology	Wired
Ethernet LAN	Yes
USB port	Yes
RS-232 ports	1

Internal memory	128 MB
Built-in barcodes	Code 128 (A/B/C),Code 39,Data Matrix,EAN13,EAN8,Interleaved 2/5,MaxiCode,PDF417,QR Code,UPC-A,UPC-E

Product colour	Black
Built-in display	Yes
Display	LCD
Display diagonal	2.8 "
Display resolution	240 x 320 pixels
Colour display	Yes
Control type	Buttons

AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
AC adapter output voltage	24 V
AC adapter output current	2.5 A

Operating relative humidity (H-H)	0 - 90 %
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 45 °C

Width	200 mm
Depth	263 mm
Height	188 mm
Weight	2000 g
