Mobile printer for mobile receipt / label issuance for logistics and delivery

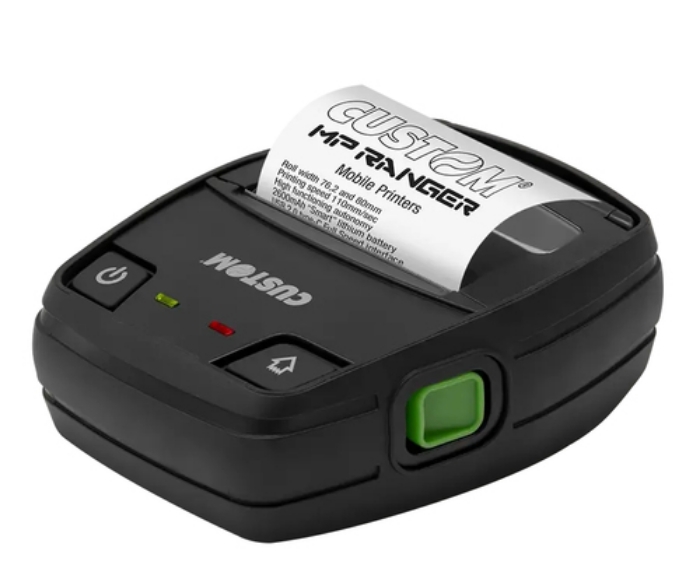

MP Ranger is a latest generation mobile printer and represents the evolution of Custom's range of mobile printers.

It can print on thermal paper in roll format, either on plain paper or peel-off format labels. Complete with sensors for displaying status and battery level, it allows the printing of 1D and 2D barcodes (QRCODE). It can handle rolls with paper width of 76.2 mm or 80 mm using the special reducer included in the package, and is designed to be used in outdoor working contexts, thanks to the IP54 protection to resist splashing of liquids and dust for use in adverse weather conditions and resistance to falls from 1 meter.

The operational equipment is completed by a clip for belt fastening and as an accessory the practical case with shoulder strap is available for greater protection. The printer is equipped with different charging options, from simple connection via USB Type-C to positioning on single charging cradles. MP Ranger can be connected to any mobile device, from simple phones, to specialized terminals, to handheld mobile computers and tablets with Bluetooth and Wi-Fi functionality thanks to the Wireless technology.

SOFTWARE
PrinterSet to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.
MP Ranger printer is equipped with Android™ libraries for print management and monitoring, Android SDK containing sample sources for interfacing with the library. Windows® drivers compatible with win7 win8, win8.1, win10 (32/64 bit support) versions are available.



Viktiga egenskaper

CUSTOM MP RANGER. Print technology: Thermal, Type: Mobile printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 100 µm, Supported paper width: 80 mm, Maximum printing width: 7.2 cm. Connectivity technology: Wired & Wireless, USB connector: USB Type-C. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Security algorithms: WHQL. Built-in barcodes: AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8,..., Internal memory: 0.64 MB, Storage media: Flash



Teknisk specifikation

Print technology	Thermal
Type	Mobile printer
Maximum resolution	203 x 203 DPI
Print speed	110 mm/sec
Character sets	GB18030,PC437,PC850,PC858,PC860,PC865,PC866

Supported paper width	80 mm
Roll core diameter (max)	40 mm
Maximum printing width	72 mm
Printing media thickness	100 µm

Connectivity technology	Wired & Wireless
USB port	Yes
USB connector	USB Type-C
Bluetooth	Yes
Bluetooth version	4.2
Bluetooth Low Energy (BLE)	Yes
Near Field Communication (NFC)	Yes

Wi-Fi	Yes
Wi-Fi standards	802.11b,802.11g,Wi-Fi 4 (802.11n)
Security algorithms	WHQL

Built-in barcodes	AZTECCODE,CODABAR (NW-7),Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,GS1 DataBar Expanded Stacked,GS1 DataBar Stacked Omnidirectional,ITF-14,ITF-25,Micro QR Code,PDF417,QR Code,UPC-A,UPC-E
Internal memory	0.64 MB
Storage media	Flash
Flash memory	8 MB
Mean time between failures (MTBF)	3246 h
Print head life	50 km
Receive buffer	16 KB

Product colour	Black

Power source type	Battery,USB
Power consumption (printing)	18.72 W
Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	7.2 V

Operating temperature (T-T)	-10 - 50 °C

Windows operating systems supported	Yes

Width	149 mm
Depth	122 mm
Height	53 mm
Weight	475 g
