RETAIL Printer

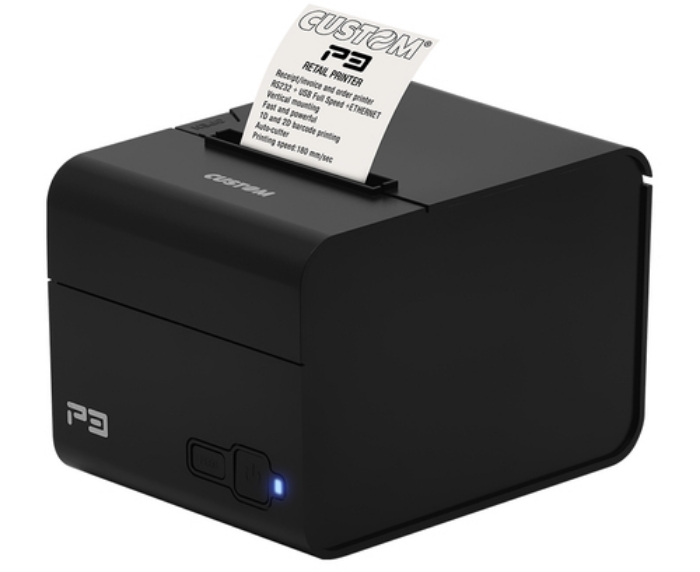

P3 is the ideal thermal POS printer for the retail and hospitality sectors. Thanks to its compact and robust design, it adapts to any Point of Sales environment. P3 stands out for its reliability and printing quality. It is equipped with a long-life printing head and a cutter for automatic receipt cutting which guarantees maximum functionality. P3 is available with triple interface: USB 2.0 Full Speed - Ethernet - Serial and 2 drawer drives.

CePrinterSet

to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.

VIRTUAL COM

Software Tool to create a virtual serial port on Windows PC (XP,Vista,7.8) capable of connecting Custom devices, physically linked via USB or ETHERNET, in such a way as to be compatible with software applications designed for connection in serial mode



Viktiga egenskaper

CUSTOM P3X. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 100 µm, Maximum roll diameter: 8 cm, Supported paper width: 80 mm. Connectivity technology: Wired, Serial interface type: RS-232. Built-in barcodes: 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, ITF, PDF417, QR..., Internal memory: 0.256 MB, Flash memory: 2 MB. Power source type: DC



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Number of printable dots	8 dot
Print speed	200 mm/sec

Maximum roll diameter	80 mm
Supported paper width	80 mm
Printing media thickness	100 µm

Connectivity technology	Wired
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232

Ethernet LAN	Yes

Built-in barcodes	2D,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,Data Matrix,EAN13,EAN8,ITF,PDF417,QR Code,UPC-A,UPC-E
Internal memory	0.256 MB
Flash memory	2 MB
Cutter	Yes
Autocutter durability	1 million cuts
Receive buffer	16 KB

Power source type	DC

Operating temperature (T-T)	0 - 50 °C

Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP
Linux operating systems supported	Yes

Width	142 mm
Depth	190 mm
Height	135.5 mm
Weight	1100 g
