Produktbeskrivning

Light and compact

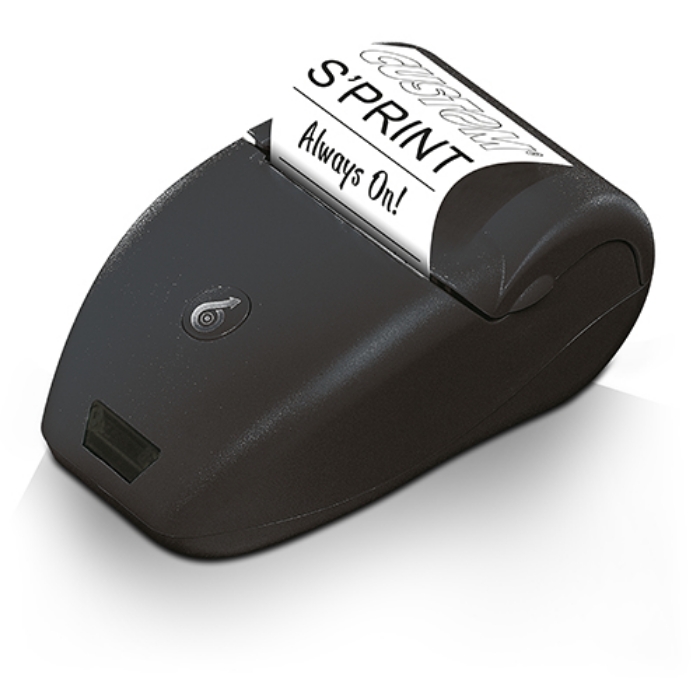

The S'PRINT thermal printers provide great capacity and performance with reduced size and weight. Automatic paper loading with patented "sixload" system. Equipped with paper end sensor and black mark sensor. The printer supports an upgradable customer logo and can print the most used barcodes EAN 13, EAN 8, CODE 39, ITF, CODABAR. S'print-s is powered via an external power supply and comes equipped with serial RS232 interface. It is the ideal solution for applications such as instruments, receipt, coupon and report printing, also for banking operations.



Viktiga egenskaper

CUSTOM S'PRINT S. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 60 µm, Maximum roll diameter: 5.75 cm, Supported paper width: 58 mm. Connectivity technology: Wired, Serial interface type: RS-232. Built-in barcodes: CODABAR (NW-7), Code 39, EAN13, EAN8, ITF, Flash memory: 0.032 MB, Mean time between failures (MTBF): 260000 h. Product colour: Black



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Print columns	8 dots/line
Print speed	50 mm/sec
Character sets	ASCII

Maximum roll diameter	57.5 mm
Supported paper width	58 mm
Printing media thickness	60 µm

Connectivity technology	Wired
Serial interface	Yes
Serial interface type	RS-232

Built-in barcodes	CODABAR (NW-7),Code 39,EAN13,EAN8,ITF
Flash memory	0.032 MB
Mean time between failures (MTBF)	260000 h
Certification	EN60950 2001, CE, TUV, RoHS, E3,e3

Product colour	Black

Power source type	DC

Operating temperature (T-T)	0 - 50 °C

Windows operating systems supported	Yes

Width	88 mm
Depth	146 mm
Height	65 mm
Weight	370 g
