Produktbeskrivning

203 DPI, 80 mm/sec, USB/RS232, 100x129x120mm, 330g



Viktiga egenskaper

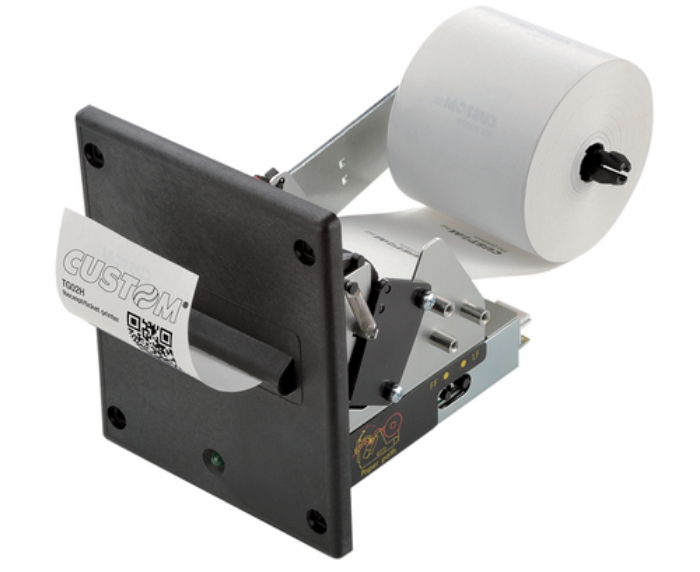

CUSTOM TG02H. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 7 cm, Supported paper width: 57 mm, Maximum printing width: 4.8 cm. Connectivity technology: Wired, Serial interface type: RS-232. Built-in barcodes: 1D, 2D, QR Code, Internal memory: 0.512 MB, Flash memory: 4 MB. Power source type: DC



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Print speed	80 mm/sec

Maximum printing width	48 mm
Supported paper width	57 mm
Maximum roll diameter	70 mm

Connectivity technology	Wired
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232

Built-in barcodes	1D,2D,QR Code
Internal memory	0.512 MB
Flash memory	4 MB
Mean time between failures (MTBF)	420000 h

Power source type	DC

Operating temperature (T-T)	-20 - 70 °C

Windows operating systems supported	Yes
Mobile operating systems supported	Android,iOS
Linux operating systems supported	Yes

Width	100 mm
Depth	129 mm
Height	120 mm
Weight	330 g
