Produktbeskrivning

60mm ticket / receipt printer

- Metal frame (galvanized/aluminium alloy)
- High print quality (200 DPI)
- Paper width: 60mm
- Paper thickness: from 60 to 80 μm
- Printing > 140 mm/sec
- RS232 and USB interfaces
- Barcodes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE
- Characters: European, International, Thai, Portuguese, Nordic, Arabic, Chinese and Russian
- Highly reliable cutter: over 1,000,000 cuts or Tear-Off system
- Sensors: head temperature, paper presence, anti paper jamming, ticket collection, paper end and near paper end
- LED bezel



Viktiga egenskaper

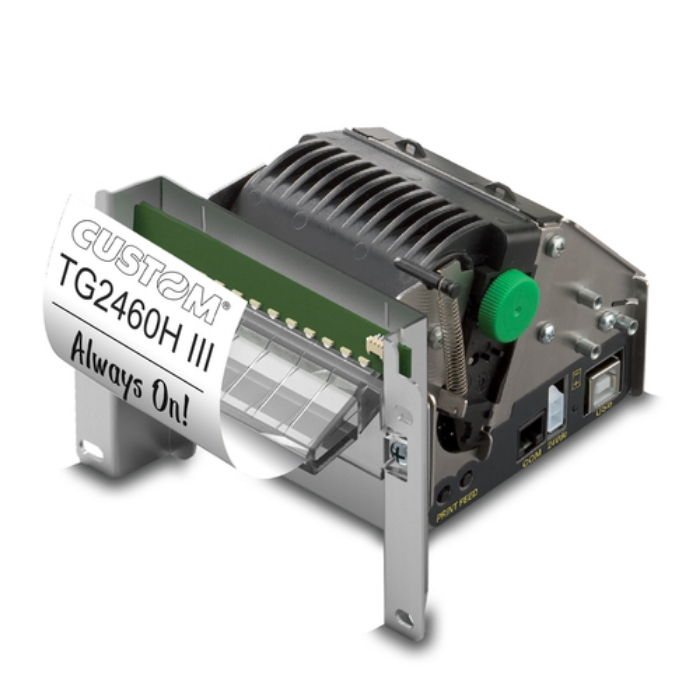

CUSTOM TG2460HIII. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 100 µm, Maximum roll diameter: 8 cm, Supported paper width: 80 mm. Connectivity technology: Wired, Serial interface type: RS-232. Built-in barcodes: 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, ITF, PDF417, QR..., Internal memory: 0.256 MB. Power source type: DC



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Number of printable dots	8 dot
Print speed	200 mm/sec

Maximum roll diameter	80 mm
Supported paper width	80 mm
Printing media thickness	100 µm

Connectivity technology	Wired
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232

Ethernet LAN	Yes

Built-in barcodes	2D,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,Data Matrix,EAN13,EAN8,ITF,PDF417,QR Code,UPC-A,UPC-E
Internal memory	0.256 MB
Cutter	Yes

Power source type	DC

Operating temperature (T-T)	0 - 50 °C

Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP
Linux operating systems supported	Yes

Width	142 mm
Depth	190 mm
Height	135.5 mm
Weight	1100 g
