Produktbeskrivning

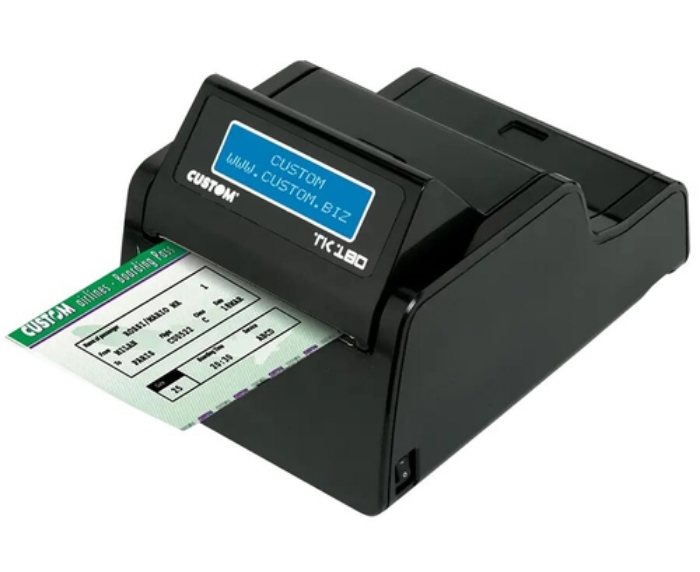

Baggage tag and boarding pass printer with tear-off bar

TK180 is the most compact combined BPP and BTP printer with native AEA firmware for a seamless integration in CUTE and CUPPS platforms. Specially designed for small check-in desks where space is a major issue, TK180 can handle BPP tickets as well as paper rolls for receipts. The bag tag support is provided by the optional paper roll holder. TK180 is a dual printer, since it can work both as BPP or BTP tool using the same firmware, configurable via set up. The NATIVE AEA 2012 firmware allow easy integration in any software architecture, without requiring any additional software. TK180 is equipped with a powerful internal processor and Hot swap function. Reliable and fast printing at 200 mm/s. The Ethernet, RS232 and USB interfaces assure easy and flexible integration, in any airport. In addition to the most common sensors, it is also provided with the new mobile VeriNotch sensor, capable of identifying black marks or gaps on any type of paper. TK180 has an automatic sensor calibration feature which is automatically activated every time paper is loaded and prevents any ticket wastage thereby contributing to environmental sustainability and reducing management costs. 2 sides tear-off. Display. TK180 supports the UHF RFID according to IATA 1740C, standard EPC Gen2.



Viktiga egenskaper

CUSTOM TK180. Print technology: Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 200 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Supported paper width: 82.5 mm. Product colour: Black



Teknisk specifikation

Print technology	Thermal transfer
Maximum resolution	300 x 300 DPI
Number of printable dots	8 dot
Print speed	200 mm/sec
Printing colours	Black
Maximum printing width	82.5 mm
Printing characters	2D barcode,Barcode,Text

Core diameter	25.4 mm
Maximum label width	82.5 mm
Maximum roll diameter	200 mm
Media thickness	70/255 mm
Supported paper width	82.5 mm

Connectivity technology	Wired
Ethernet LAN	Yes
USB port	Yes
RS-232 ports	1
Optional connectivity	Serial (RS-232),USB 2.0

Internal memory	3 MB
Flash memory	3 MB
Certification	CE, RED compliant FCC compliant ISO 18000-6B Philips UCODE EPC 1.19 EPC Class1 Gen2 / ISO 18000-6C

Product colour	Black

AC input voltage	100 - 240 V
AC adapter output voltage	24 V
AC adapter output current	1.5 A

Windows operating systems supported	Yes
Mobile operating systems supported	Android,iOS
Linux operating systems supported	Yes

Operating temperature (T-T)	0 - 40 °C

Width	130 mm
Depth	185.9 mm
Height	118.9 mm
Weight	1900 g
