Produktbeskrivning
Performance levels in a modern design product

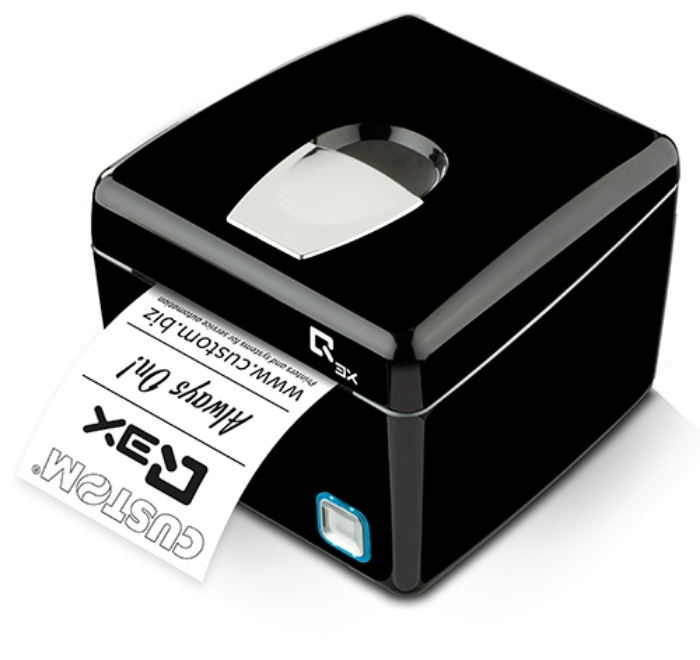

Q3X is the ideal solution for those customers searching for the latest performance levels in a modern design product. The thermal head provides excellent graphic printing quality and lower consumption. The cutter has been designed to optimize the product performance, both in terms of efficiency and reliability, and meets the most demanding operating requirements. Its elegant design, developed to perfectly match any environment, is combined with high technological contents. It prints on 80 mm wide thermal paper, with front ticket outlet. Serial / USB interface. Bluetooth and Wi-Fi interfaces available.
Viktiga egenskaper
CUSTOM Q3X. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 61 µm, Maximum roll diameter: 8 cm, Supported paper width: 80 mm. Connectivity technology: Wired, USB connector: USB Type-B, Serial interface type: RS-232. Built-in barcodes: 1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN8, ITF, PDF417, UPC-A, UPC-E, Flash memory: 4 MB, Mean time between failures (MTBF): 360000 h. Product colour: Black
Teknisk specifikation
Printing
| Print technology | Thermal |
|---|
| Type | POS printer |
|---|
| Maximum resolution | 203 x 203 DPI |
|---|
| Print columns | 8 dots/line |
|---|
| Print speed | 140 mm/sec |
|---|
| Character sets | PC437,PC850,PC858,PC860,PC863,PC865 |
|---|
Paper handling
| Supported paper width | 80 mm |
|---|
| Maximum roll diameter | 80 mm |
|---|
| Printing media thickness | 61 µm |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| USB port | Yes |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB connector | USB Type-B |
|---|
| Serial interface | Yes |
|---|
| Serial interface type | RS-232 |
|---|
Features
| Built-in barcodes | 1D,2D,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,EAN8,ITF,PDF417,UPC-A,UPC-E |
|---|
| Flash memory | 4 MB |
|---|
| Mean time between failures (MTBF) | 360000 h |
|---|
| Cutter | Yes |
|---|
| Certification | EN60950 +A1+A2+A3+A4, CE, RoHS |
|---|
Design
| Product colour | Black |
|---|
System requirements
| Windows operating systems supported | Yes |
|---|
| Mac compatibility | Yes |
|---|
| Mobile operating systems supported | Android,iOS |
|---|
| Linux operating systems supported | Yes |
|---|
Weight & dimensions
| Width | 140 mm |
|---|
| Depth | 150 mm |
|---|
| Height | 117 mm |
|---|
| Weight | 900 g |
|---|
