Produktbeskrivning

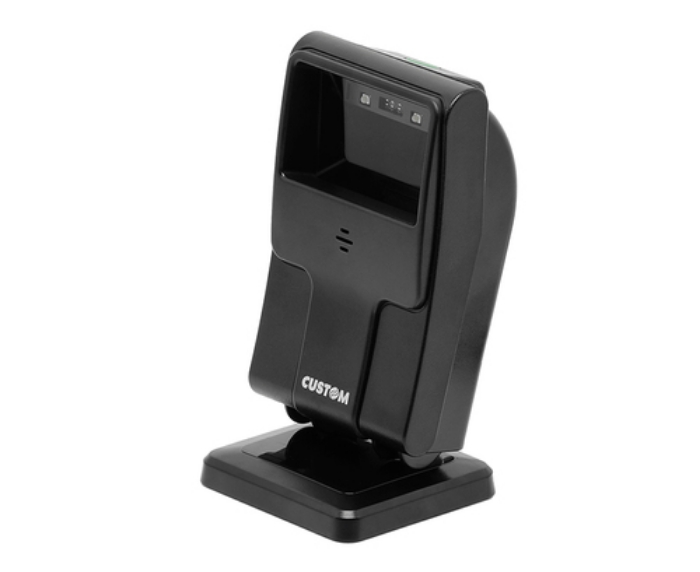

1D/2D Presentation Scanner
P-SCANRANGER is an omnidirectional barcode scanner for 1D and 2D codes, even from smartphones. It’s an extremely versatile device thanks to its compactness which, however, doesn’t limit his reading performance at all. P SCANRANGER has a particularly wide reading range, up to 46 ° horizontally and up to 30 ° vertically. His appealing design makes it an ideal solution for retail applications.



Viktiga egenskaper

CUSTOM SR500NM. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Power source type: DC. Weight: 300 g, Width: 73 mm, Depth: 70 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	LED
Linear (1D) barcodes supported	Code 128,Code 32,Code 39,Code 93,EAN 128,EAN-13,EAN-8,Interleaved 2 of 5,JAN,MSI,Plessey,Trioptic,U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code,Composite Codes,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Optical sensor resolution (W x H)	752 x 480 pixels
Working distance	267 mm

Connectivity technology	Wired
Standard interfaces	RS-232,USB

Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS)

Power source type	DC

Width	73 mm
Depth	70 mm
Height	140 mm
Weight	300 g
