Top seller kiosk printer with a unique green paper mouth

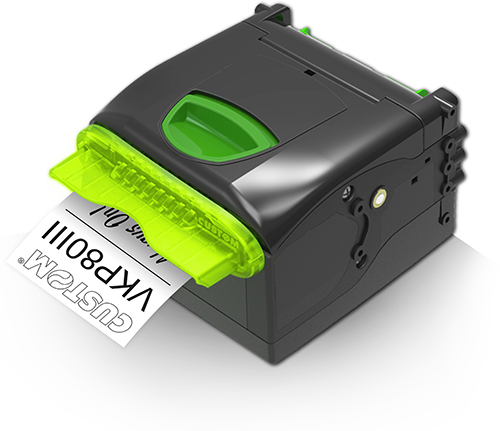

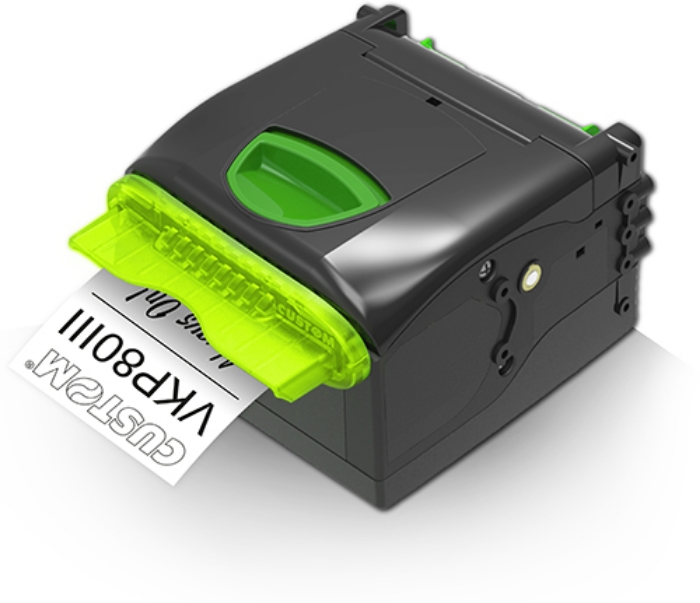

VKP80III is a kiosk printer for receipts and tickets, top seller and reference product in more than 70 countries in the world. Compact, flexible and sturdy it’s also full of features, such as the high performing processor and the long-lasting printing head. It’s suitable for any kind of kiosk, thanks to the adjustable roll holder and the possibility mount it on both sides, overall 6 different positions. VKP80III is equipped with a patented anti-jam system with jamming autodetection and auto eject retry, illuminated bezel and paper presenter with eject/retract function, with the possibility to work also in the fiscal markets thanks to a dedicated model.

FUNCTIONALITIES

Automatic ticket ejecting & retractring back (speed > of 1,000 mm/s)
Patented retracting function w/o ticket presentation
Patented anti-jam system with jamming autodetection and auto eject retry
Extremely versatile integration with drivers and utilities for Windows, Linux, Android and iOS

Hot swap function: it is possible to replace the printer in the kiosk w/out powering it off
Print head self-diagnostic function: it is possible to get the number of not working dots
Digital journal printer: the printer allows the saving of receipt data in the flash memory in text or image format; data can be simply read via USB (mass storage)

SENSORS

Paper end (ticket presence), paper output, open printer cover, near paper end on external paper roll holder, printing head temperature;
VeriNotch: mobile notch/black mark sensor, no thermal side; optional TopNotch
Extra cable for the paper near end sensor, it can be used when the paper roll holder is installed 90° on the right side



Viktiga egenskaper

CUSTOM VKP80III. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 18 cm, Supported paper width: 82.5 mm. Connectivity technology: Wired, USB connector: Mini-USB Type-B, Serial interface type: RS-232. Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13,..., Flash memory: 5 MB, Mean time between failures (MTBF): 450000 h. Product colour: Black, Green



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Print speed	250 mm/sec
Character sets	PC437,PC850,PC858,PC860,PC863,PC865

Supported paper width	82.5 mm
Maximum roll diameter	180 mm

Connectivity technology	Wired
USB port	Yes
USB connector	Mini-USB Type-B
Serial interface	Yes
Serial interface type	RS-232

Ethernet LAN	Yes

Built-in barcodes	1D,2D,AZTECCODE,CODABAR (NW-7),Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,ITF,PDF417,QR Code,UPC-A,UPC-E
Flash memory	5 MB
Mean time between failures (MTBF)	450000 h
Cutter	Yes

Product colour	Black,Green

Power source type	DC

Operating temperature (T-T)	-20 - 70 °C

Windows operating systems supported	Windows 7,Windows 8,Windows Vista,Windows XP
Linux operating systems supported	Yes

Width	116 mm
Depth	143.5 mm
Height	76.4 mm
Weight	800 g
