Produktbeskrivning

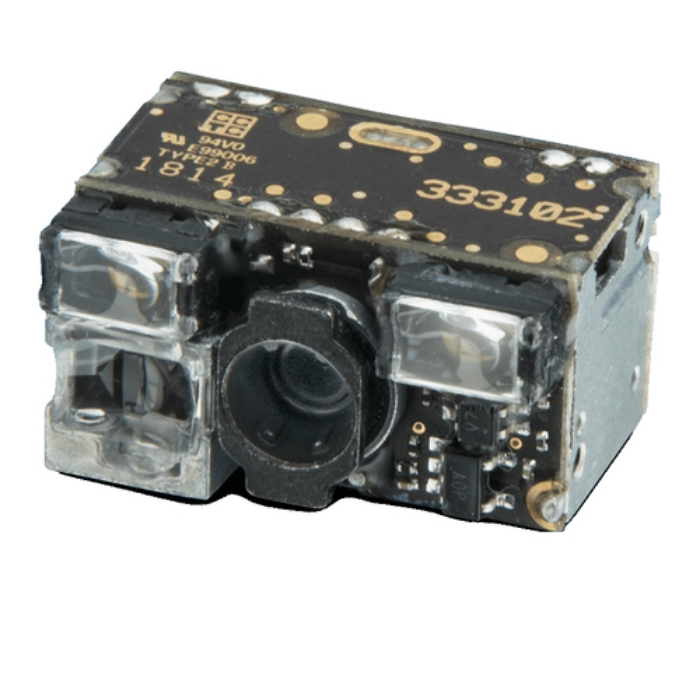

The DE2011-DL is an ultra-compact high performance 2D imager engine. It features an exceptional high-speed sensor which enables image capture at a full 60 frames per second, delivering outstanding motion tolerance. The steady white illumination is pleasant to the user’s eyes.
The DE2011-DL OEM engine features outstanding Depth of Field (DOF) reading, a nominal field of view, high motion tolerance, snappy reading and excellent performance on decoding poorly printed bar codes or bar codes displayed on mobile devices and computer screens.
Customers can directly connect the scan engine into their device main board by using the industry standard camera port on a 21-pin ZIF connector.
With the use of the Datalogic Software Decoder for Engines (DSDE), customers can integrate the DE2011-DL OEM engine into their device working with the power of Datalogic decoding algorithms. The DSDE is available for Windows, WinCE, Linux and Android operating systems. Customers have full control of the operation and function of the scan engine working within their application.
The compact size of these scan engines allow turnkey integration into a wide array of application systems requiring barcodes to be read. These include customer-facing kiosks, medical test equipment, small-footprint sorting stations for merchandise or documents. Anywhere a barcode needs to be ready and a standard scanner is not practical to be used.
Viktiga egenskaper
Datalogic DE2011-DL. Type: Fixed bar code reader, Scanner type: 2D, Linear (1D) barcodes supported: China Post, Codabar 125, Code 11, Code 128, Code 128A, Code 128B, Code 25 (IR 2 of 5), Code 3 of.... Connectivity technology: Wired. Product colour: Multicolour. Power source type: RS-232, USB, Input voltage: 3.3 V, Power consumption: 200 mA. Weight: 9 g, Width: 21 mm, Depth: 15.8 mm
Teknisk specifikation
Scanning
| Type | Fixed bar code reader |
|---|
| Scanner type | 2D |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,QR Code |
|---|
| Linear (1D) barcodes supported | China Post,Codabar 125,Code 11,Code 128,Code 128A,Code 128B,Code 25 (IR 2 of 5),Code 3 of 9,Code 39,Code 39 (ASCII),Code 93,DataBar14,EAN 128,EAN 2,EAN 5,GS1 Composite,GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1 Databar Limited,GS1 Da |
|---|
| Optical sensor resolution (W x H) | 752 x 480 pixels |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
| Wavelength | 650 nm |
|---|
| Tilt reading angle | -180 - 180 ° |
|---|
| Pitch reading angle | -60 - 60 ° |
|---|
| Yaw reading angle | -60 - 60 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
Performance
| Product colour | Multicolour |
|---|
Power
| Power source type | RS-232,USB |
|---|
| Input voltage | 3.3 V |
|---|
| Power consumption | 200 mA |
|---|
Weight & dimensions
| Width | 21 mm |
|---|
| Depth | 15.75 mm |
|---|
| Height | 11.4 mm |
|---|
| Weight | 9 g |
|---|
