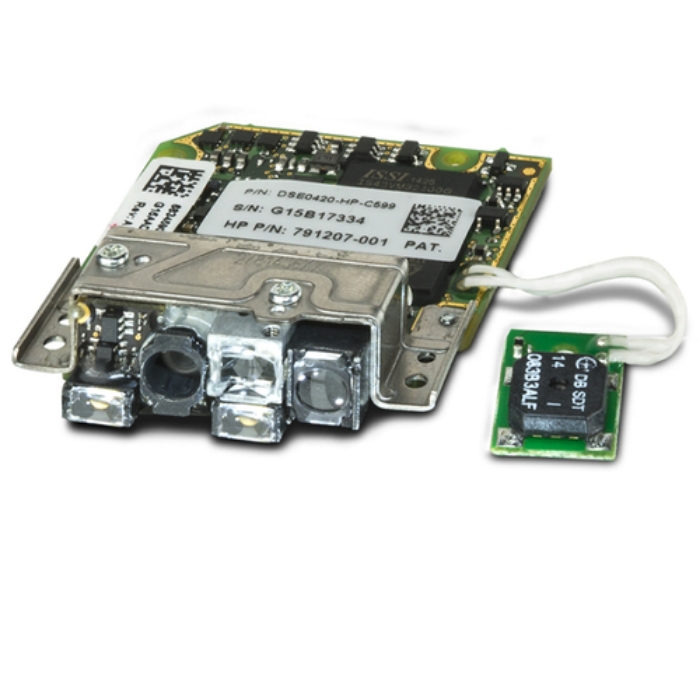

DSE0420 Scan Module

Decoded version of the DE2011-DL ultra-compact high performance 2D imager engine with capture at 60 fps

Overview

The DSE0420 is the decoded version of the DE2011-DL ultra-compact high performance 2D imager engine. The scan engine features an exceptional high-speed sensor which enables image capture at a full 60 frames per second, delivering outstanding motion tolerance. The DSE0420 scan module includes Datalogic’s snappy, high-performance decoder which can read all common 1D and 2D bar codes. It can be installed into the device as a whole scan module (mounted by a metal bracket), or separately for application environments that have very limited space at the front end. Customers can embed the decoder board at another location and connect it to the scan engine through an industry standard flat cable. The decoder board can be connected to the device’s main board through a standard USB flat cable, which supports all USB interfaces such as USB Keyboard, USB HID and USB COM. DSE0420-D connects via a microUSB cable.

Features

- Scan engine can be installed with the decoder board as one module or separately
- Highly visible center cross with four corner dots aiming system
- Steady white illumination
- Snappy reading performance with high motion tolerance
- Excellent reading of 1D or 2D codes on print or displayed on mobile device or computer screens
- Low power consumption enables longer battery life
- Datalogic’s ‘Green Spot’ technology for visual good-read feedback (optional)
- DSE0420-D Demo Kit available, features a trigger and interface board



Viktiga egenskaper

Datalogic DSE0420-D. Product colour: Multicolour



Teknisk specifikation

Product colour	Multicolour

Harmonized System (HS) code	84733020
