Produktbeskrivning

IMAGING TECHNOLOGY
The Gryphon 4500 series represents the premium range of handheld
scanners from Datalogic for value added applications. Designed with
people in mind, the Gryphon 4500 series stands out with its elegant and
cutting edge design, the unchallenged ergonomics, and features the most
advanced Megapixel sensor with white-illumination 2D technology for
outstanding performance.

SIMPLE TO USE AND DEPLOY
The Gryphon I 4500 omnidirectional imager provides snappy reading
performance on all common 1D and 2D codes as well as postal, stacked,
and composite codes like PDF417. High Density (HD) models are also
available for reading smaller, condensed codes. A dedicated version with
red illumination optics reads Digital Watermarking.
For mobile marketing or ticketing applications, this imager also offers
excellent performance when reading bar codes from mobile devices. The
enhanced optics offer improved motion tolerance and first pass decoding
of fast moving codes.

READY TO BE REGULARLY CLEANED AND DISINFECTED
Most working environments now have requirements that scanners need
to be regularly cleaned and disinfected. The Gryphon 4500 series utilizes
Disinfectant-Ready enclosures, designed to withstand regular daily
cleaning with harsh disinfectant solutions commonly used in a healthcare
environment.

WIRELESS COMMUNICATIONS AND WIRELESS CHARGING
Featuring Bluetooth® wireless technology (GBT models) or narrow band
radio communications with Datalogic’s STAR Cordless System™ (GM
models), the Gryphon 4500 wireless readers provide maximum flexibility to
solve any end user application with the best technical solution.
One of the most important technical innovations that the Gryphon 4500
wireless scanners achieve is the battery recharge through an inductive
charging system, lowering the total cost of ownership because it
eliminates the need for contacts’ cleaning and maintenance procedures.
The maximum reliability offered by the wireless charging technology
means 24/7 activities with no stops for maintenance or repair and toplevel operating productivity and performance.



Viktiga egenskaper

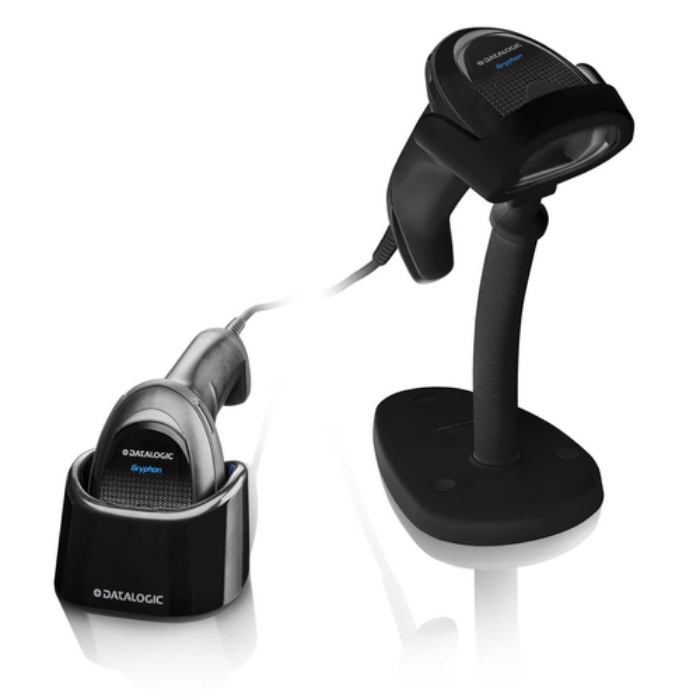

Datalogic Gryphon I GD4520. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Drop proof. Power source type: DC, Battery technology: Lithium-Ion (Li-Ion), Input voltage: 5 V. Weight: 161 g, Width: 68 mm, Depth: 109 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	Laser
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Dot Code A,MaxiCode,Micro QR Code,QR Code
Optical sensor resolution (W x H)	1280 x 800 pixels
Light levels (direct sunlight)	0 - 100000 lx
Wavelength	650 nm
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °

Connectivity technology	Wired
Standard interfaces	USB

Product colour	Black
International Protection (IP) code	IP52
Protection features	Drop proof
LED indicators	Yes
Built-in display	No
Image formats supported	BMP,JPEG,TIFF

Power source type	DC
Battery technology	Lithium-Ion (Li-Ion)
Input voltage	5 V
Power consumption	400 mA

Width	68 mm
Depth	109 mm
Height	166 mm
Weight	161 g

Charging base	Yes
Cables included	USB

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Harmonized System (HS) code	84716070
