Produktbeskrivning

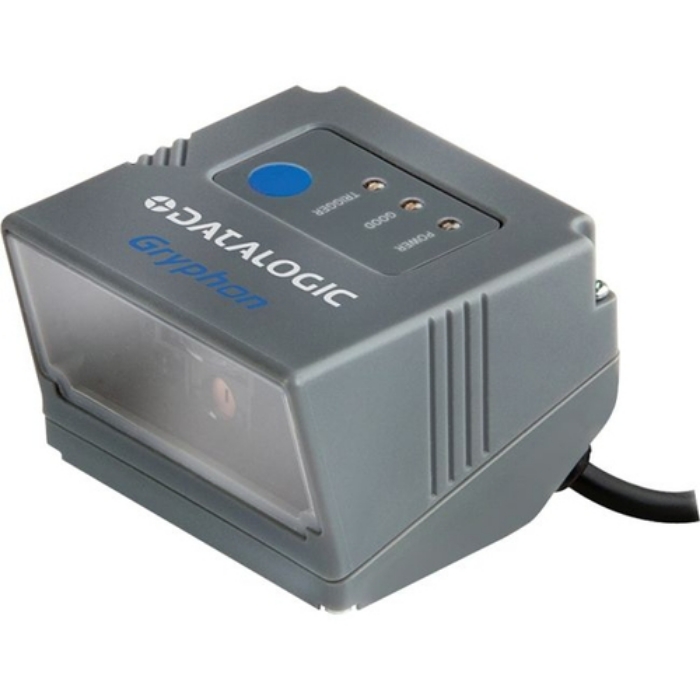

Fixed Mount Linear Imager Bar Code Reader
Using advanced imaging technology, the Gryphon™ I GFS4100 fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.

Designed for easy integration, the Gryphon I GFS4100 reader provides a simple ‘plugand-play’ solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable and reliable scanning performance.

The Gryphon I GFS4100 OEM module shares the same excellent reading characteristics found in the premium line of Gryphon™ 4100 series of handheld devices. Featuring outstanding near-field reading, a wide angle field-of-view, improved motion tolerance and snappy reading, it also offers integrators excellent performance on decoding poor or damaged codes. As with all Gryphon readers, the GFS4100 reader offers users additional good-read visual confirmation with Datalogic’s patented ‘Green Spot’ technology.

The Gryphon I GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor.

Available in two models, the GFS4150-9 model supports an RS-232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB-HID for easy integration and keyboard emulation, or USB COM for virtual serial communications.



Viktiga egenskaper

Datalogic GFS4170. Type: Fixed bar code reader, Sensor type: CCD, Read rate (max): 320 reads/s. Standard interfaces: USB. Product colour: Grey, Certification: RoHS. Input voltage: 5 V, Power consumption: 390 mA. Weight: 170 g



Teknisk specifikation

Type	Fixed bar code reader
Sensor type	CCD
Read rate (max)	320 reads/s
Light levels (direct sunlight)	0 - 100000 lx
Tilt reading angle	-35 - 35 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-65 - 65 °
Decoding standards	1D GS1 DataBar linear codes

Standard interfaces	USB

Product colour	Grey
Certification	RoHS

Input voltage	5 V
Power consumption	390 mA

Weight	170 g

Storage temperature (T-T)	-25 - 50 °C
Operating temperature (T-T)	0 - 50 °C

Harmonized System (HS) code	84716070

Light source	630 - 670nm
