Produktbeskrivning

The Gryphon 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers’ ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic’s Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the ‘ready-to-read’ scanning mode. Datalogic’s distinctive ‘soft line viewfinder’ helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded ‘Desk’ model (GD4200), a cordless model featuring Bluetooth wireless technology (GBT4200) and a cordless model featuring Datalogic’s STAR Cordless System narrow band radio (GM4200).



Viktiga egenskaper

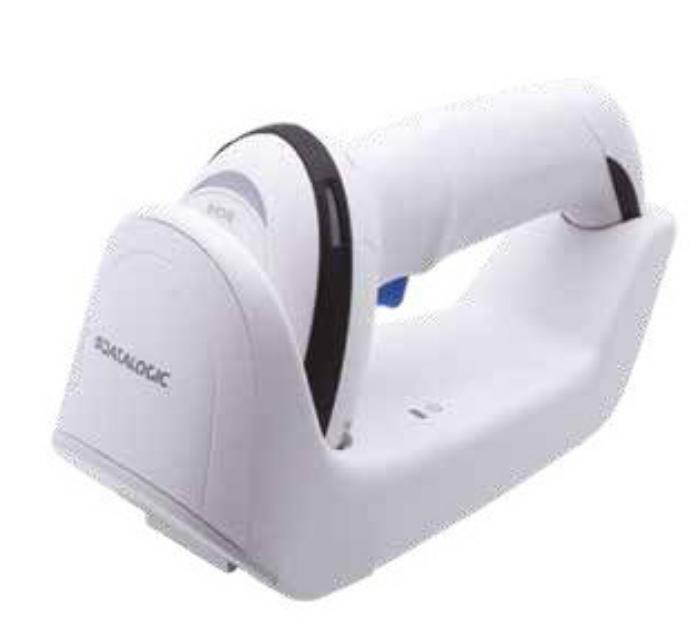

Datalogic Gryphon GBT4200. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: CCD. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 100 m. Product colour: White, International Protection (IP) code: IP52, Protection features: Electrostatic Discharge (ESD) protection. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 235 g, Width: 166 mm, Depth: 68 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Linear (1D) barcodes supported	GS1 DataBar
Sensor type	CCD
Read rate (max)	400 reads/s
Light levels (direct sunlight)	0 - 130000 lx
Tilt reading angle	-45 - 45 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-65 - 65 °
Scanner resolution	0.077 mm

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	100 m
Bluetooth version	4.0
Operating frequency	2400 MHz

Product colour	White
International Protection (IP) code	IP52
Protection features	Electrostatic Discharge (ESD) protection
LED indicators	Yes

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery type	Built-in battery
Number of batteries supported	1
Battery capacity	2550 mAh
Battery voltage	3.6 V
Number of reads per charge	80000
Charging time	4 h
Input voltage	4.5 - 14 V

Width	166 mm
Depth	68 mm
Height	109 mm
Weight	235 g

Charging base	Yes
Cables included	USB

Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95 %

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
