Produktbeskrivning

IMAGING TECHNOLOGY

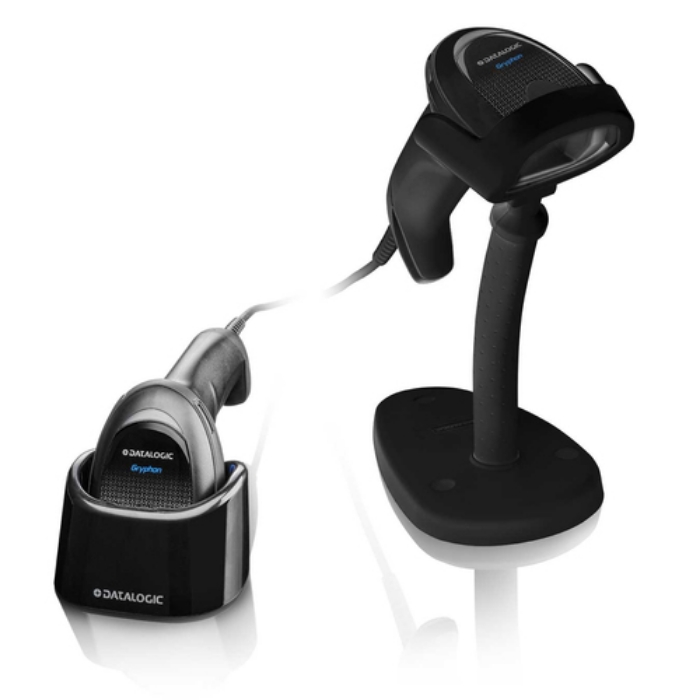

The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

SIMPLE TO USE AND DEPLOY
The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked, and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The
enhanced optics offer improved motion tolerance and first pass decoding of fast moving codes.

READY TO BE REGULARLY CLEANED AND DISINFECTED
Most working environments now have requirements that scanners need to be regularly cleaned and disinfected. The Gryphon 4500 series utilizes Disinfectant-Ready enclosures, designed to withstand regular daily cleaning with harsh disinfectant solutions commonly used in a healthcare environment.

WIRELESS COMMUNICATIONS AND WIRELESS CHARGING
Featuring Bluetooth® wireless technology (GBT models) or narrow band radio communications with Datalogic’s STAR Cordless System™ (GM models), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution. One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, lowering the total cost of ownership because it
eliminates the need for contacts’ cleaning and maintenance procedures. The maximum reliability offered by the wireless charging technology means 24/7 activities with no stops for maintenance or repair and toplevel operating productivity and performance.



Viktiga egenskaper

Datalogic Gryphon GBT4500. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 100 m. Product colour: Black, International Protection (IP) code: IP52. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery capacity: 3250 mAh. Weight: 235 g, Width: 109 mm, Depth: 68 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	Laser
2D (matrix & stacked) barcodes supported	Data Matrix,GS1 DataBar Expanded Stacked,GS1 DataBar Stacked Omnidirectional,MaxiCode,Micro QR Code,MicroPDF417,QR Code
Linear (1D) barcodes supported	GS1 DataBar,GS1 DataBar Expanded,PDF417
Optical sensor resolution (W x H)	1280 x 800 pixels
Light levels (direct sunlight)	0 - 100000 lx
Wavelength	650 nm
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-65 - 65 °

Connectivity technology	Wireless
Standard interfaces	Bluetooth
Wireless range	100 m
Bluetooth version	4.0
Operating frequency	2400 MHz

Product colour	Black
International Protection (IP) code	IP52

Power source type	Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	3250 mAh
Battery voltage	12 V
Number of reads per charge	80000
Charging time	4 h
Input voltage	4.5 - 14 V

Width	109 mm
Depth	68 mm
Height	166 mm
Weight	235 g

Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
