Produktbeskrivning

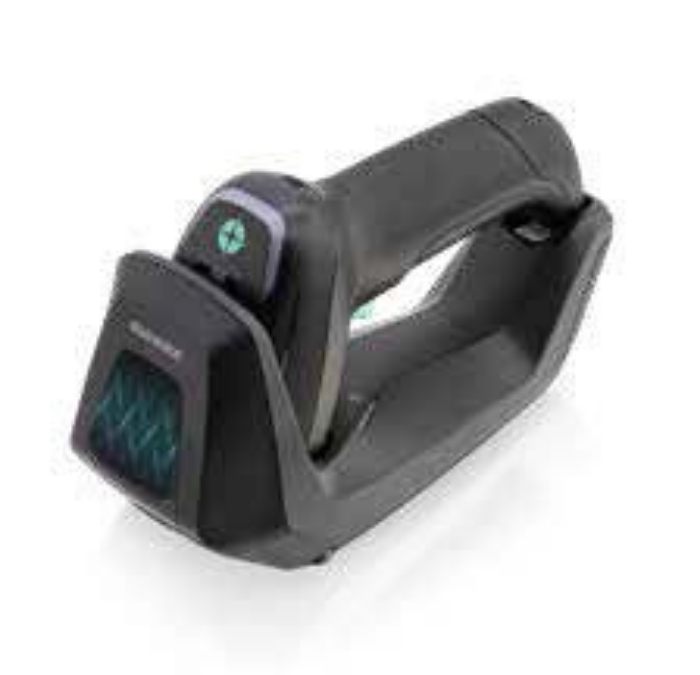

The Gryphon 4600 series sets a new benchmark
The Gryphon™ 4600 series sets a new benchmark for handheld barcode scanning. Engineered with eco-design principles and cutting-edge imaging technology, it combines outstanding performance with sustainability. From its reduced power consumption and recyclable materials to its advanced optics and intelligent illumination, Gryphon 4600 represents a smarter, greener way to scan.

Designed for Sustainability
Datalogic’s first handheld scanner line to embrace an eco-friendly design, the Gryphon 4600 achieves up to 25% lower power consumption and incorporates over 70% recycled materials, reducing both energy use and environmental impact. Even its packaging and product weight are optimized to minimize carbon footprint, with independent verification and Carbon Footprint Certification in progress.

Advanced Imaging Technology
The Gryphon 4600 introduces dual-sensor (1.5 MP + VGA) optics, delivering superior depth-of-field and flawless readability from high-density to low-density codes, near or far. This flexibility allows a single device to cover multiple applications, reducing the need for model variants.

Dual-color LED illumination adapts automatically to the task, while a bright green LED crosshair aimer ensures precise targeting that’s both safe and easy to see. Whether scanning 1D, 2D, GS1 Digital Link, or digital watermark codes, Gryphon 4600 performs with exceptional accuracy and speed.

Powered by Intelligence
A high-speed dual-core processor, advanced decoding algorithms, and AI technology work together to accelerate first-pass reads — even for moving or damaged codes. Combined with Datalogic’s Green Spot good-read feedback, operators gain fast, reliable scanning in any environment, quiet or noisy.

Ultimate Versatility Across Industries
Built for retail, healthcare, manufacturing, and logistics, the Gryphon 4600 adapts effortlessly to any workflow. Models include:

High Performance (HP) for superior depth-of-field and versatility
High Density (HD) for compact, complex codes
Healthcare (HC) with disinfectant-ready enclosures and antimicrobial protection
This unified portfolio lets resellers, integrators, and end users standardize on one scanner family, simplifying deployment and reducing inventory.

Smarter Power and Connectivity
Choose between a high-capacity Li-Ion battery pack or an innovative SuperCapacitor battery-free option for flexible, sustainable power management. Gryphon 4600 retains compatibility with legacy Gryphon accessories, including stands, bases, and chargers, protecting existing investments.

Wireless models support inductive charging and smart battery monitoring for longer life and less downtime.



Viktiga egenskaper

Datalogic Gryphon GM4600. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Optical. Connectivity technology: Wired & Wireless, Standard interfaces: RS-232, USB, Wireless range: 100 m. Product colour: Black, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG, TIFF. Power source type: USB, Battery capacity: 3250 mAh, Battery voltage: 3.7 V. Weight: 426 g, Width: 210 mm, Depth: 75 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Code 39,EAN-13,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,JAN,PDF417,PLANET,POSTNET,U.P.C.
Sensor type	Optical
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Tilt reading angle	360 - 360 °
Yaw reading angle	65 - 65 °
Motion tolerance (cm/s)	70

Connectivity technology	Wired & Wireless
Standard interfaces	RS-232,USB
Wireless range	100 m
Bluetooth version	5.2
Bluetooth Low Energy (BLE)	Yes
Operating frequency	433.92, 915, 2400 MHz

Product colour	Black
International Protection (IP) code	IP52
LED indicators	Yes
Buzzer	Yes
Image formats supported	BMP,JPEG,TIFF
Print contrast	15 %
Vibration function	Yes

Power source type	USB
Battery capacity	3250 mAh
Battery voltage	3.7 V
Number of reads per charge	80000
Charging time	3.5 h
Input voltage	4.5 - 14 V
Power consumption	300 mA

Width	210 mm
Depth	75 mm
Height	109 mm
Weight	426 g

Charging base	Yes

Operating relative humidity (H-H)	0 - 95 %
Drop resistance	1.8 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Compliance certificates	RoHS,China RoHS
