Produktbeskrivning

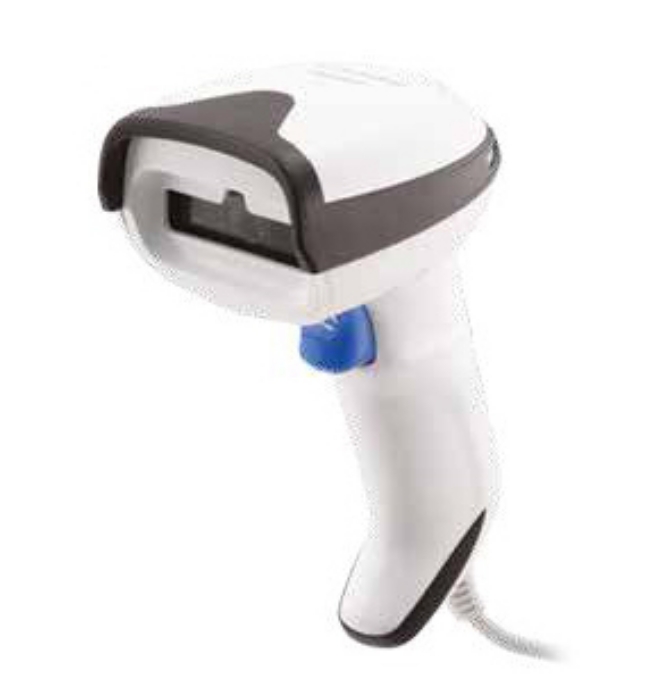

The Gryphon™ 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers’ ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the ‘ready-to-read’ scanning mode. Datalogic’s distinctive ‘soft line viewfinder’ helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded ‘Desk’ model (GD4200), a cordless model featuring Bluetooth® wireless technology (GBT4200) and a cordless model featuring Datalogic’s STAR Cordless System™ narrow band radio (GM4200).
Viktiga egenskaper
Datalogic Gryphon I GD4220. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Linear. Connectivity technology: Wired, Standard interfaces: USB. Product colour: White, International Protection (IP) code: IP52, Protection features: Electrostatic Discharge (ESD) protection. Power source type: DC, USB, Input voltage: 5 V. Weight: 163 g, Width: 166 mm, Depth: 68 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D |
|---|
| 2D (matrix & stacked) barcodes supported | Not supported |
|---|
| Linear (1D) barcodes supported | GS1 DataBar |
|---|
| Sensor type | Linear |
|---|
| Read rate (max) | 400 reads/s |
|---|
| Tilt reading angle | 0 - 45 ° |
|---|
| Pitch reading angle | 0 - 65 ° |
|---|
| Yaw reading angle | 0 - 65 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | USB |
|---|
Performance
| Product colour | White |
|---|
| International Protection (IP) code | IP52 |
|---|
| Protection features | Electrostatic Discharge (ESD) protection |
|---|
| LED indicators | Yes |
|---|
| Ambient lighting | Yes |
|---|
| Print contrast | 15 % |
|---|
Power
| Power source type | DC,USB |
|---|
| Input voltage | 5 V |
|---|
Weight & dimensions
| Width | 166 mm |
|---|
| Depth | 68 mm |
|---|
| Height | 109 mm |
|---|
| Weight | 163 g |
|---|
Packaging data
| Cables included | USB Type-C |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
