Produktbeskrivning

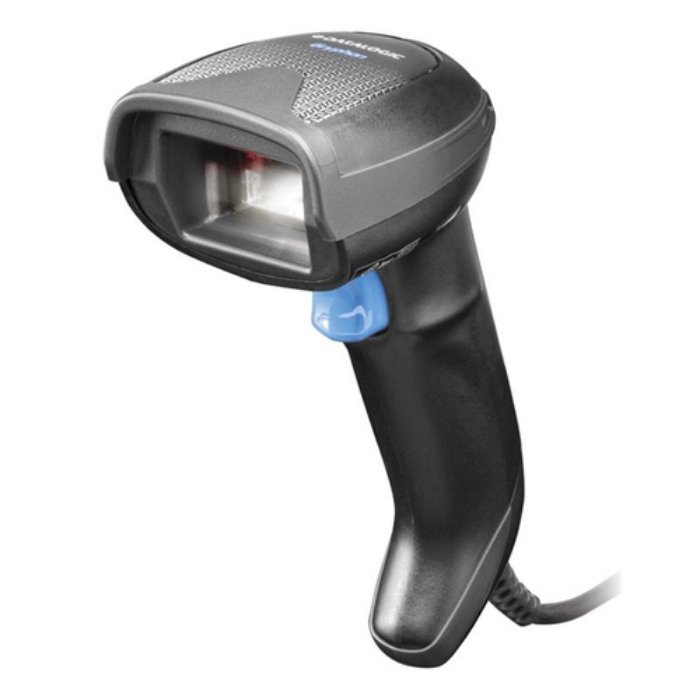

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Viktiga egenskaper
Datalogic Gryphon I GD4500. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET,.... Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Black, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Input voltage: 4.5 - 14 V, Power consumption: 300 mA. Weight: 161 g, Width: 68 mm, Depth: 109 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code |
|---|
| Linear (1D) barcodes supported | Code 39,EAN-13,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,JAN,PDF417,PLANET,POSTNET,U.P.C. |
|---|
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
| Wavelength | 650 nm |
|---|
| Tilt reading angle | 0 - 360 ° |
|---|
| Pitch reading angle | -65 - 65 ° |
|---|
| Yaw reading angle | -65 - 65 ° |
|---|
| Motion tolerance (cm/s) | 88.9 |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | RS-232,USB,Keyboard wedge |
|---|
Performance
| Product colour | Black |
|---|
| International Protection (IP) code | IP52 |
|---|
| Protection features | Shock resistant |
|---|
| Built-in display | No |
|---|
| Image formats supported | BMP,JPEG |
|---|
| Certification | IEC 60825 Class 2 |
|---|
Power
| Power source type | DC |
|---|
| Input voltage | 4.5 - 14 V |
|---|
| Power consumption | 300 mA |
|---|
Weight & dimensions
| Width | 68 mm |
|---|
| Depth | 109 mm |
|---|
| Height | 166 mm |
|---|
| Weight | 161 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
