Produktbeskrivning
1 MP optics for superior scanning and Depth of Field
Datalogic distinctive technology with highly visible white-illumination and 4-Dot aimer with center cross for targeted scanning
Datalogic’s ‘Green Spot’ technology, exclusive 3GL™ (3 Green Lights) and Vibration for superior good-read feedback
Motionix™ motion-sensing technology for seamless reading mode transitions
Image capture and document scanning capabilities
Omnidirectional reading of 1D, 2D and postal codes plus stacked, composite codes and dot codes; Digital Watermarks on specific models
Choice of Bluetooth wireless technology version or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
Wireless battery charging system
Choice of WLC4090 adjustable position cradle with Scan-While-Charging capability or WLC4190 sleek desk/wall cradle with USB Type C connectivity
Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
Specific black models with enclosures treated with anti-microbial additives available (ISO22196 compliant)
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Viktiga egenskaper

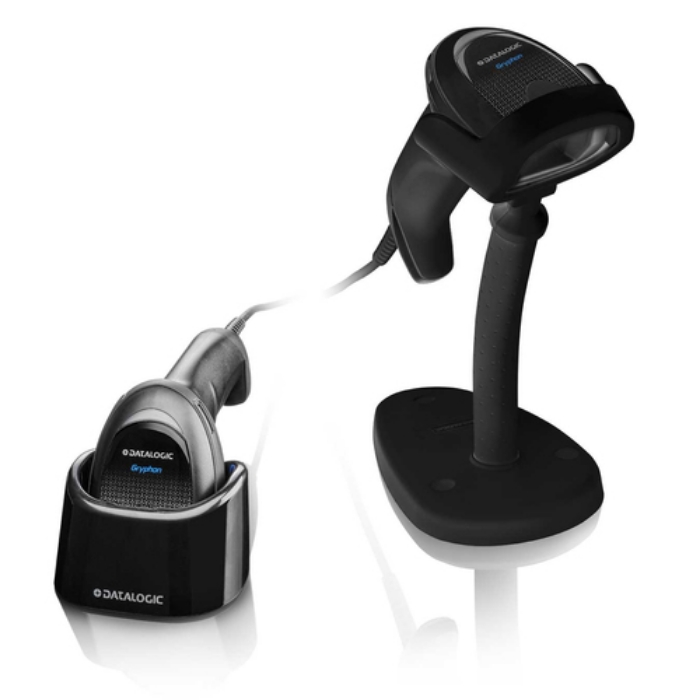

Datalogic Gryphon I GD4590. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Drop proof, Shock resistant. Power source type: DC, Battery technology: Lithium-Ion (Li-Ion), Input voltage: 5 V. Weight: 161 g, Width: 68 mm, Depth: 109 mm
Teknisk specifikation
Scanning
| Type | Built-in bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,Dot Code A,MaxiCode,Micro QR Code,QR Code |
|---|
| Sensor type | Laser |
|---|
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
| Wavelength | 650 nm |
|---|
| Tilt reading angle | 0 - 360 ° |
|---|
| Pitch reading angle | -65 - 65 ° |
|---|
| Yaw reading angle | -65 - 65 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | Keyboard wedge,RS-232,USB |
|---|
Performance
| Product colour | Black |
|---|
| International Protection (IP) code | IP52 |
|---|
| Protection features | Drop proof,Shock resistant |
|---|
| LED indicators | Yes |
|---|
| Built-in display | No |
|---|
| Image formats supported | BMP,JPEG,TIFF |
|---|
Power
| Power source type | DC |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Input voltage | 5 V |
|---|
| Power consumption | 400 mA |
|---|
Weight & dimensions
| Width | 68 mm |
|---|
| Depth | 109 mm |
|---|
| Height | 166 mm |
|---|
| Weight | 161 g |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
