Produktbeskrivning

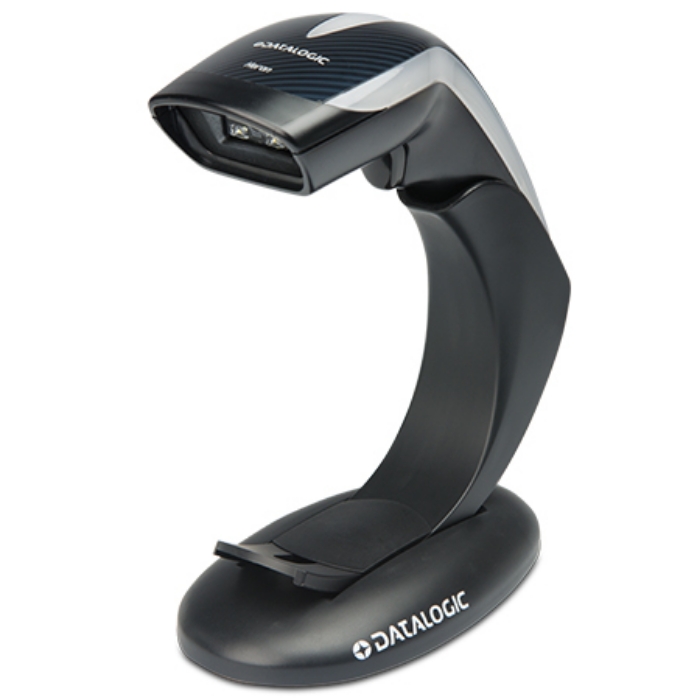

HERON 3400

The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand. The Heron HD3430 area imager provides outstanding 2D reading performance and image capture capability. It also includes the patented 'Green Spot' technology for good-read feedback. User comfort is maximized with the Heron HD3430 white illumination and the highly visible 4-Dot aimer defines a precise reading zone. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.



Viktiga egenskaper

Datalogic Heron HD3430 Kit. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB, RS-232. Product colour: Black, Silver, International Protection (IP) code: IP40. Power source type: Battery, Input voltage: 5 V, Power consumption: 500 mA. Weight: 150 g, Width: 68 mm, Depth: 153 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,QR Code
Sensor type	CMOS
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
Light levels (direct sunlight)	0 - 100000 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-60 - 60 °

Connectivity technology	Wired
Standard interfaces	USB,RS-232
USB version	2.0

Product colour	Black,Silver
International Protection (IP) code	IP40
LED indicators	Yes
Programming function	Yes

Power source type	Battery
Input voltage	5 V
Power consumption	500 mA

Width	68 mm
Depth	153 mm
Height	152 mm
Weight	150 g

Cables included	USB

Operating relative humidity (H-H)	5 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
