OVERVIEW

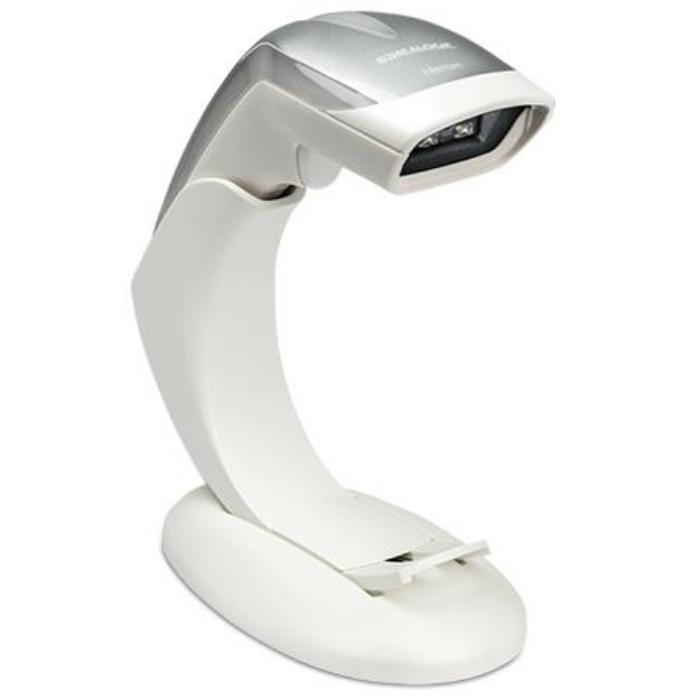

Datalogic is pleased to announce the release of the Heron HD3430 2D area imager with unmatched elegance and advanced technology for the modern point-of-sale.
The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand.

FEATURES

Outstanding reading performance on 1D, 2D, postal codes, stacked, composite codes and Image capture
Multiple changing color LEDs on sides and top
Top of the market illumination and aiming system
Polyphonic speaker for a wide variety of choices regarding audio feedback
Datalogic’s patented ‘Green Spot’ technology for good-read feedback
Automatic switching between handheld and hands-free operations

APPLICATIONS

Non-food specialty stores such as Fashion Clothes, Cosmetics, Jewelry, Perfume, etc.
Duty-free and Airport stores
Commercial Services: Banks, Insurance Companies and Utilities
The Heron HD3430 2D area imager completes the Heron family offering by adding 2D reading capability to the existing Heron readers and providing customers with an unmatched choice regarding price and bar code reading needs.



Viktiga egenskaper

Datalogic HD3430-WHK1S. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: USB, RS-232. Product colour: White. Power source type: Battery, Input voltage: 5 V, Power consumption: 500 mA. Weight: 150 g, Width: 68 mm, Depth: 153 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,QR Code
Sensor type	CMOS
Light levels (direct sunlight)	0 - 100000 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-60 - 60 °

Connectivity technology	Wired
Standard interfaces	USB,RS-232
USB version	2.0

Product colour	White
LED indicators	Yes
Programming function	Yes

Power source type	Battery
Input voltage	5 V
Power consumption	500 mA

Width	68 mm
Depth	153 mm
Height	152 mm
Weight	150 g

Cables included	USB

Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90 %

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
