Produktbeskrivning

Built for modern self-checkout
The Magellan 3600VSi is Datalogic’s next-generation vertical single-plane scanner, engineered for self-checkout systems and compact retail environments where space efficiency, speed, and reliability are critical.

As retailers increasingly deploy thin SCO kiosks and space-optimized counters, the 3600VSi delivers high-performance scanning in a compact vertical form factor, maintaining fast and intuitive checkout even in constrained layouts.

Intelligent loss prevention, built in
The Magellan 3600VSi integrates UHF RFID directly into the scanner, enabling hybrid barcode and RFID reading in a single scan. This supports end-to-end product traceability across inventory, checkout, and returns, providing stronger protection at the POS than traditional EAS systems.

A built-in 1 MP color video camera supports checkout surveillance and item recognition when paired with external software, helping retailers identify mis-scans, ticket switching, and suspicious behavior in real time.

Optimized vertical design for tight spaces
The vertical architecture of the Magellan 3600VSi maximizes the scan envelope while minimizing footprint, making it ideal for slim self-checkout kiosks and compact cashier counters.

Customers can present items naturally and scan full baskets with confidence, while high motion tolerance and adaptive decoding reduce rescans and limit the need for staff intervention.

Faster throughput, smoother SCO flow
The Magellan 3600VSi delivers 25% faster throughput on 2D codes than the previous generation, with best-in-class 1D and 2D throughput and motion tolerance. The reliability has also significantly improved in reading codes on mobile screens and reading from damaged or poorly printed labels.



Viktiga egenskaper

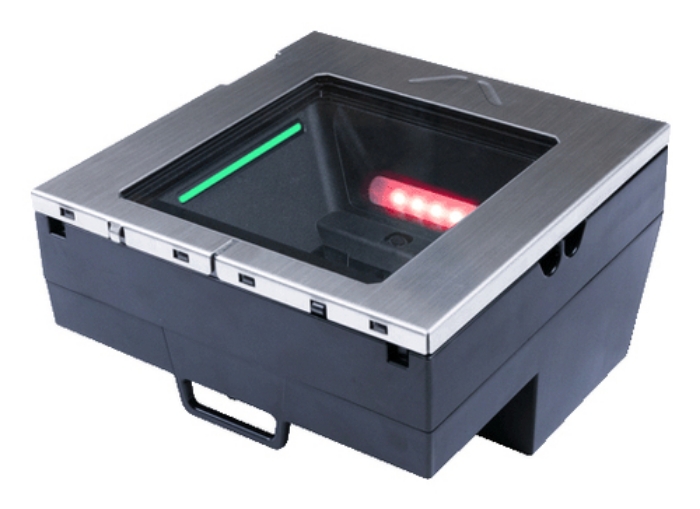

Datalogic Magellan 3710HSi. Type: Built-in bar code reader, Scanner type: 1D, Linear (1D) barcodes supported: GS1 DataBar. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, Silver, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG, TIFF. Power source type: DC, Power consumption (typical): 1.8 W, Power consumption (standby): 1 W. Weight: 900 g, Width: 152 mm, Depth: 87 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,QR Code
Linear (1D) barcodes supported	GS1 DataBar
Optical sensor resolution (W x H)	1360 x 1120 pixels
Horizontal field of view	74 °
Vertical field of view	50 °
Light levels (direct sunlight)	0 - 86100 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-65 - 65 °

Connectivity technology	Wired
Standard interfaces	RS-232,USB
USB version	2.0

Product colour	Black,Silver
International Protection (IP) code	IP52
LED indicators	Yes
Buzzer	Yes
Built-in display	No
Image formats supported	BMP,JPEG,TIFF
Print contrast	25 %

Power source type	DC
Power consumption (typical)	1.8 W
Power consumption (standby)	1 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz

Width	152 mm
Depth	87 mm
Height	152 mm
Weight	900 g

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
