Produktbeskrivning

THE POWER OF IMAGING

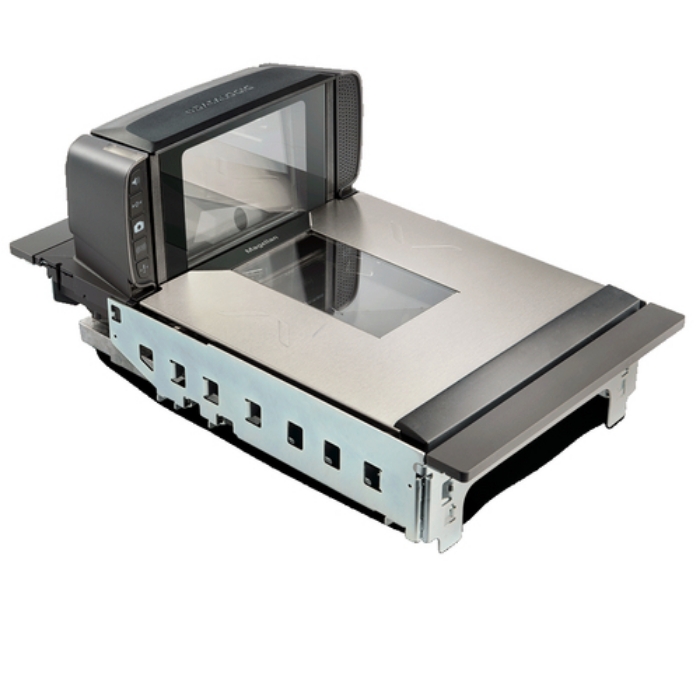

The Magellan™ 9300i/9400i scanner/scale: a new class of high
performance bar code scanners. With digital imagers in all planes,
the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly
without requiring item orientation by the cashier.
With a more traditional bonnet height and large horizontal and vertical
windows, the Magellan 9300i/9400i allows optimum positioning for
POS or self-checkout touchscreens, payment terminals and printers
while maintaining ergonomic comfort for both seated and standing
cashiers.

ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables
retailers to easily engage their customers in mobile commerce
programs, allowing them to scan bar codes from their mobile phone
screen or paper coupons while the cashier continues to scan regular
items in parallel, resulting in a significant reduction in total transaction
time.

LOSS PREVENTION
Innovative features and options such as ScaleSentry™ shrink
monitoring/prevention technology, AllWeighs™ platters and the
support of all major EAS systems make 9300i/9400i purpose-built to
help retailers reduce shrink at the POS.

ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM Systems
Director® and Wavelink® Avalanche®. Additional capabilities are
available with the Value Added Features included in every Magellan
scanner.



Viktiga egenskaper

Datalogic Magellan 9400i. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Stainless steel, Image formats supported: BMP, JPEG. Power source type: AC, Power consumption (typical): 12 W, Power consumption (standby): 11 W. Width: 292 mm, Depth: 102 mm, Height: 130 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,QR Code
Sensor type	Laser
Linear (1D) barcodes supported	GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,PDF417,UPC-A,UPC-E
Light levels (direct sunlight)	0 - 86080 lx

Connectivity technology	Wired
Standard interfaces	RS-232,USB

Product colour	Stainless steel
Built-in display	No
Image formats supported	BMP,JPEG

Power source type	AC
Power consumption (typical)	12 W
Power consumption (standby)	11 W
Input frequency	50/60 Hz
AC adapter output voltage	100 - 240 V

Width	292 mm
Depth	102 mm
Height	130 mm

Cables included	RS-232

Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C

Compliance certificates	REACH,RoHS

Harmonized System (HS) code	84716070
