Produktbeskrivning

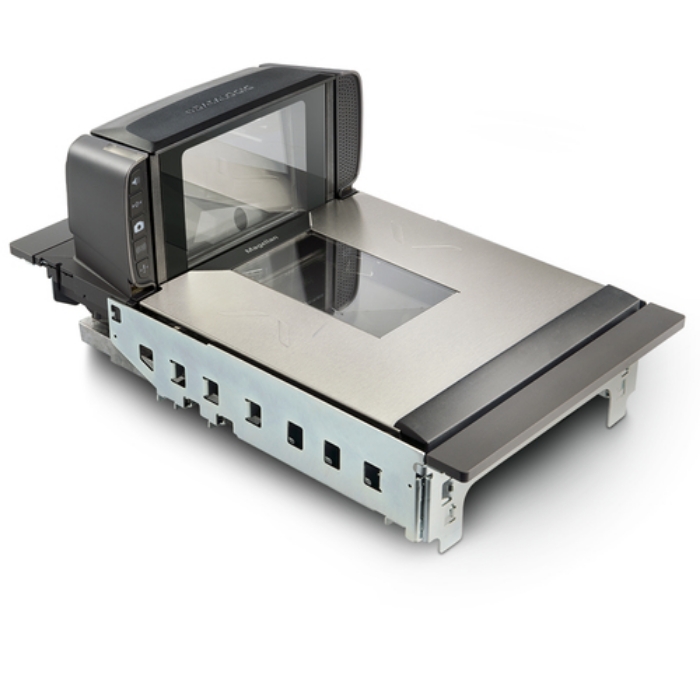

Magellan 9300i
The Magellan™ 9300i imagers have traditional bonnet height with large horizontal and vertical windows.

The Magellan™ 9300i scanner and scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i scanners read both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.

With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.

The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

Innovative features and options such as ScaleSentry™ shrink monitoring/prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9300i purpose-built to help retailers reduce shrink at the POS.



Viktiga egenskaper

Datalogic Magellan 9300i. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Grey. Power source type: AC, Power consumption (typical): 12 W, Power consumption (standby): 11 W



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,MicroPDF417,PDF417,QR Code
Linear (1D) barcodes supported	GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,JAN
Light levels (direct sunlight)	0 - 86080 lx

Connectivity technology	Wired
Standard interfaces	RS-232

Product colour	Black,Grey

Power source type	AC
Power consumption (typical)	12 W
Power consumption (standby)	11 W
Input frequency	50 - 60 Hz
AC adapter output voltage	100 - 240 V

Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	10 - 40 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
