Produktbeskrivning

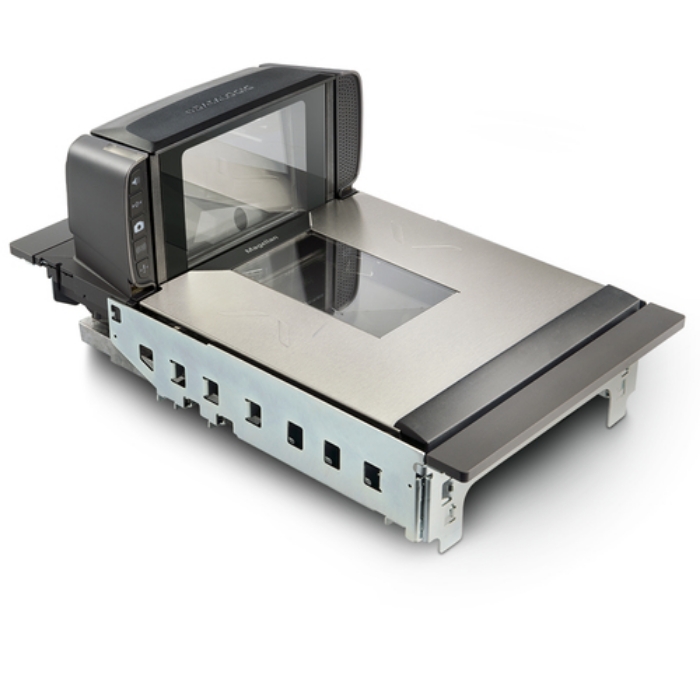

The Magellan 9400i imagers read 1D/2D bar codes and Digimarc Barcodes in any orientation

The Magellan 9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9400i scanners read both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier. With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers. The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. Innovative features and options such as ScaleSentry shrink monitoring/prevention technology, AllWeighs platters and the support of all major EAS systems make 9400i purpose-built to help retailers reduce shrink at the POS.



Viktiga egenskaper

Datalogic Magellan 9400i. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: Linear. Connectivity technology: Wired. Product colour: Black, Silver, Protection features: Electrostatic Discharge (ESD) protection, Image formats supported: BMP, JPEG. Power source type: AC, Power consumption (typical): 12 W, Power consumption (standby): 11 W. Width: 130 mm, Depth: 401 mm, Height: 130 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
Sensor type	Linear
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,QR Code
Linear (1D) barcodes supported	GS1 DataBar Expanded,GS1 DataBar Omnidirectional,JAN,PDF417,U.P.C.
Light levels (direct sunlight)	0 - 86000 lx

Connectivity technology	Wired

Product colour	Black,Silver
Protection features	Electrostatic Discharge (ESD) protection
LED indicators	Yes
Image formats supported	BMP,JPEG
Certification	R.E.A.C.H - EC1907/2006

Power source type	AC
Power consumption (typical)	12 W
Power consumption (standby)	11 W
Input voltage	100-240 V
Input frequency	50-60 Hz

Width	130 mm
Depth	401 mm
Height	130 mm

Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	10 - 40 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
