Produktbeskrivning

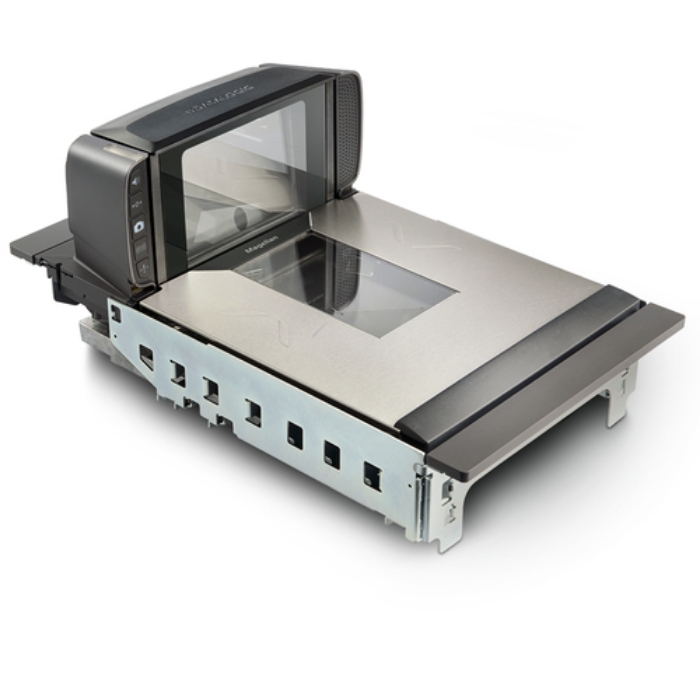

The Magellan™ 9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9400i scanners read both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
Innovative features and options such as ScaleSentry™ shrink monitoring/prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9400i purpose-built to help retailers reduce shrink at the POS.
Viktiga egenskaper
Datalogic Magellan 9400i. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Stainless steel, Image formats supported: BMP, JPEG. Power source type: AC, Power consumption (typical): 12 W, Power consumption (standby): 11 W. Width: 292 mm, Depth: 102 mm, Height: 130 mm
Teknisk specifikation
Scanning
| Type | Built-in bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,Micro QR Code,QR Code |
|---|
| Sensor type | Laser |
|---|
| Linear (1D) barcodes supported | EAN-13,GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,PDF417,UPC-A,UPC-E |
|---|
| Light levels (direct sunlight) | 0 - 86080 lx |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | RS-232,USB |
|---|
Performance
| Product colour | Stainless steel |
|---|
| Image formats supported | BMP,JPEG |
|---|
Power
| Power source type | AC |
|---|
| Power consumption (typical) | 12 W |
|---|
| Power consumption (standby) | 11 W |
|---|
| Input frequency | 50/60 Hz |
|---|
| AC adapter output voltage | 100 - 240 V |
|---|
Weight & dimensions
| Width | 292 mm |
|---|
| Depth | 102 mm |
|---|
| Height | 130 mm |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating temperature (T-T) | 10 - 40 °C |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
