Produktbeskrivning

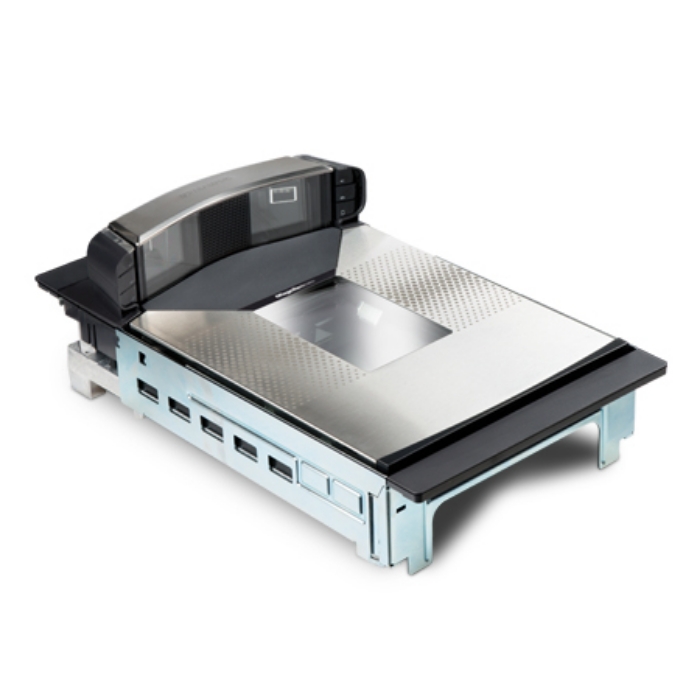

The Magellan 9800i scanner offers state-of-the-art imaging with high reliability designed to provide maximum throughput for both 1D and 2D bar codes. This scanner is the world’s first grocery checkout bar code scanner driven completely by high performance digital imaging.
The striking design improves ergonomics with its lower bonnet height allowing improved placement of POS or Self-Checkout touchscreens, payment terminals and receipt printers. The centered speaker provides audio feedback with customizable WAV files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.
A unique optional feature is the Top Down Reader (TDR) that delivers seamless scanning of top-marked items. The Magellan 9800i scanner with TDR also has a customer-facing imager allowing shoppers to quickly and easily self-scan digital coupons from mobile devices, paper-based coupons and loyalty cards.
Features- All-Weighs™ Scale Platter
- Full digital scanning & image capture
- Top Down Reader
- Digital watermark decoding
- Datalogic Clear™ Glass
- Sleek low profile design
Viktiga egenskaper
Datalogic Magellan 9800i. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Grey. Power source type: AC, Power consumption (typical): 12 W, Power consumption (standby): 11 W
Teknisk specifikation
Scanning
| Type | Built-in bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Linear (1D) barcodes supported | GS1 DataBar Expanded,GS1 DataBar Omnidirectional,JAN,U.P.C. |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,Micro QR Code,QR Code,Small Aztec Code |
|---|
| Light levels (direct sunlight) | 0 - 86080 lx |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | RS-232 |
|---|
Performance
| Product colour | Black,Grey |
|---|
| Built-in display | No |
|---|
Power
| Power source type | AC |
|---|
| Power consumption (typical) | 12 W |
|---|
| Power consumption (standby) | 11 W |
|---|
| Input voltage | 100 - 240 V |
|---|
| Input frequency | 50 - 60 Hz |
|---|
Operational conditions
| Operating temperature (T-T) | 10 - 40 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
