Produktbeskrivning

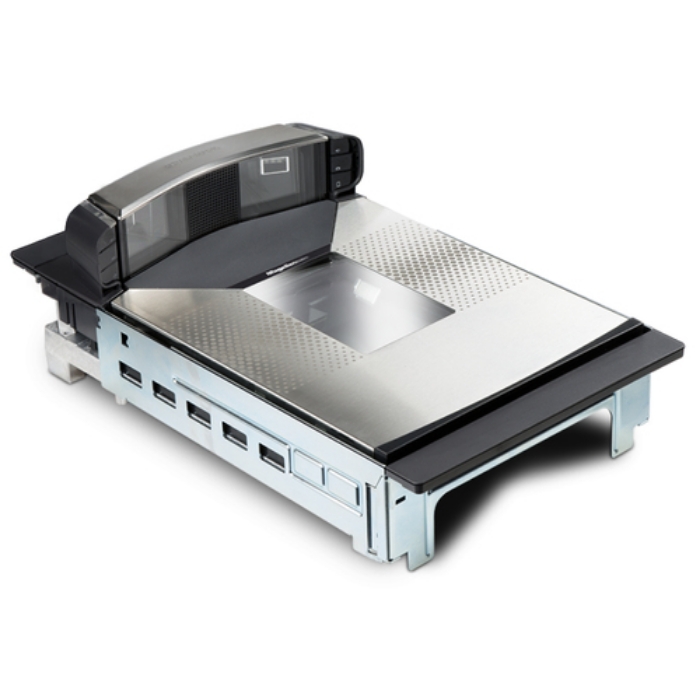

Datalogic, the global leader in high volume retail checkout scanning, has created the next generation scanner for high volume checkouts. The new Magellan 9800i scanner is the world’s first bar code scanner driven completely by high performance digital imaging, resulting in the ability to increase checkout performance in the world’s busiest checkout environments.
The Magellan 9800i scanner offers a state-of-the-art family of imaging scanners and scanner/scales with high reliability designed to provide maximum throughput for both 1D and 2D bar codes.
With a new and unique optional feature, the Top Down Reader offers seamless scanning of top-marked items. The Magellan 9800i scanner also enables a new way to interact with shoppers: a customer-facing imager allows shoppers to quickly and easily self-scan digital coupons from mobile devices, paper-based coupons and loyalty cards.

Features
- Advanced digital imaging in all reading planes
- Seamless reading of 1D and 2D codes in all planes with good-read audio and visual confirmation for fast, uninterrupted scanning
- Optional Top Down Reader (TDR) adds large topside field-of-view as well as a customer-facing mobile device reader
- The largest ever All-Weighs™ scale platter enables effortless, accurate weighing of long or bulky items
- ScaleSentry™ Shrink Monitoring/Prevention System reduces losses from oversized items outside the weighing surface
- Low bonnet height allows for accessibility and flexibility in checkstand layout
- Top side accessible service port allows for the product to stay in the counter for most service calls (including software upgrades)
- Illumix™ Intelligent Illumination Technology designed for digital imaging in retail



Viktiga egenskaper

Datalogic MGL9800i. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar Omnidirectional. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Silver. Power source type: AC, Power consumption (typical): 12 W, Input voltage: 100 - 240 V. Width: 292 mm, Depth: 106 mm, Height: 68 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	GS1 DataBar Omnidirectional
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,MicroPDF417,PDF417,QR Code
Light levels (direct sunlight)	0 - 86080 lx

Connectivity technology	Wired
Standard interfaces	USB

Product colour	Silver
LED indicators	Yes
Buzzer	Yes

Power source type	AC
Power consumption (typical)	12 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz

Width	292 mm
Depth	106 mm
Height	68 mm

Cables included	USB

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Harmonized System (HS) code	84716070
