Produktbeskrivning

THE POWER OF IMAGING

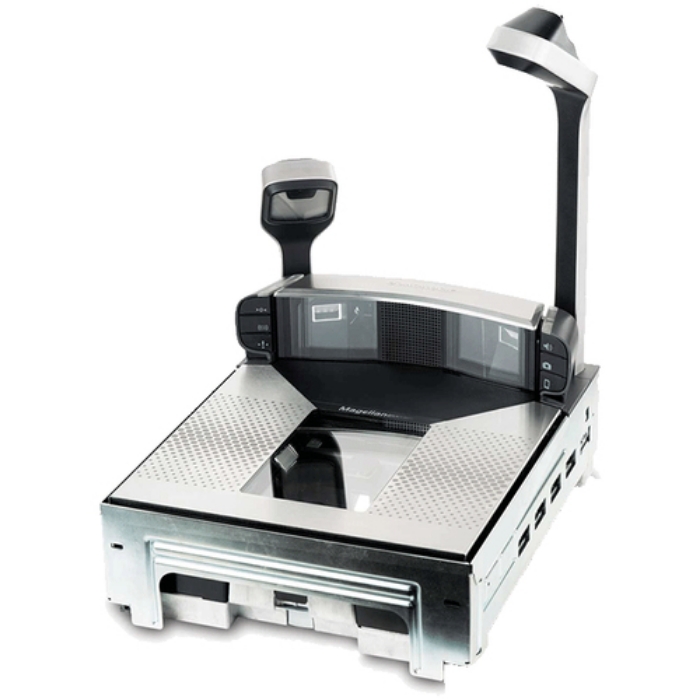

The Magellan 9800i scanner/scale defines a new class of high
performance bar code scanners for a worldwide market. With digital
imagers in all planes, the 9800i scanner is the first scanner capable of
reading both 1D and 2D bar codes seamlessly without requiring item
orientation by the cashier.
The striking new design improves ergonomics with its lower bonnet
height to allow repositioning of POS or self check-out touchscreens,
payment terminals and receipt printers to better accommodate ADA
customers. The centered speaker provides audio feedback with .wav
files for greater fidelity. The large horizontal window is ergonomically
positioned for both standing and seated cashiers.

ENHANCING THE CUSTOMER EXPERIENCE
An integrated, customer-facing mobile device reader enables retailers
to easily engage in mobile commerce. This eliminates the need for
an additional scanner, power supply, outlet, interface cable, POS port
and mounting hardware. The customer can scan bar codes from their
mobile phone screen or paper coupons while the cashier continues
to scan regular items in parallel, resulting in a significant reduction in
total transaction time.

LOSS PREVENTION
Shrink reduction ranks high among retailers’ concerns and the
Magellan 9800i scanner has key features designed to reduce shrink at
the POS.

ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM™ Director
and Wavelink™ Avalanche. Additional capabilities are available with the
Value Added Features included in every Magellan scanner.



Viktiga egenskaper

Datalogic Magellan 9800i. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Stainless steel, Image formats supported: BMP, JPEG, Certification: Complies to China RoHS; Complies to EU RoHS; Complies to R.E.A.C.H. - EC1907/2006. Power source type: AC, Power consumption (typical): 12 W, Power consumption (standby): 11 W. Width: 352 mm, Depth: 106 mm, Height: 68 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
Sensor type	Laser
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,QR Code
Linear (1D) barcodes supported	GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,JAN,PDF417,UPC-A,UPC-E
Light levels (direct sunlight)	0 - 86080 lx

Connectivity technology	Wired
Standard interfaces	RS-232,USB

Product colour	Stainless steel
Built-in display	No
Image formats supported	BMP,JPEG
Certification	Complies to China RoHS; Complies to EU RoHS; Complies to R.E.A.C.H. - EC1907/2006

Power source type	AC
Power consumption (typical)	12 W
Power consumption (standby)	11 W
Input frequency	50/60 Hz
AC adapter output voltage	100 - 240 V

Width	352 mm
Depth	106 mm
Height	68 mm

Cables included	AC

Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %

Harmonized System (HS) code	84716070
