Produktbeskrivning

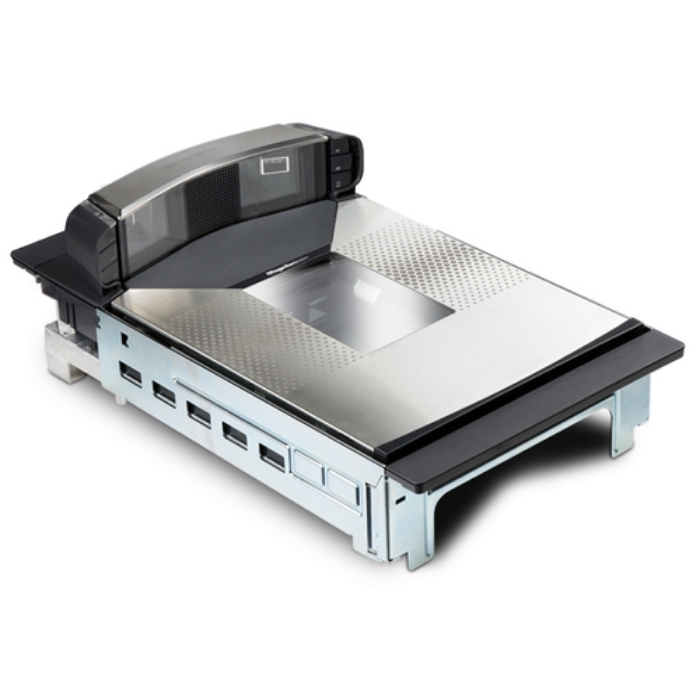

The Magellan 9800i scanner offers state-of-the-art imaging with high reliability designed to provide maximum throughput for both 1D and 2D bar codes. This scanner is the world’s first grocery checkout bar code scanner driven completely by high performance digital imaging.

The striking design improves ergonomics with its lower bonnet height allowing improved placement of POS or Self-Checkout touchscreens, payment terminals and receipt printers. The centered speaker provides audio feedback with customizable WAV files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.

A unique optional feature is the Top Down Reader (TDR) that delivers seamless scanning of top-marked items. The Magellan 9800i scanner with TDR also has a customer-facing imager allowing shoppers to quickly and easily self-scan digital coupons from mobile devices, paper-based coupons and loyalty cards.



Viktiga egenskaper

Datalogic 9800i. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar Expanded, GS1-128 (UCC/EAN-128). Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Silver. Power source type: AC, Power consumption (typical): 12 W, Input voltage: 100 - 240 V



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,QR Code
Linear (1D) barcodes supported	GS1 DataBar Expanded,GS1-128 (UCC/EAN-128)

Connectivity technology	Wired
Standard interfaces	RS-232

Product colour	Silver
LED indicators	Yes
Buzzer	Yes
Built-in display	No

Power source type	AC
Power consumption (typical)	12 W
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz

Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C

Harmonized System (HS) code	84716070
