Produktbeskrivning

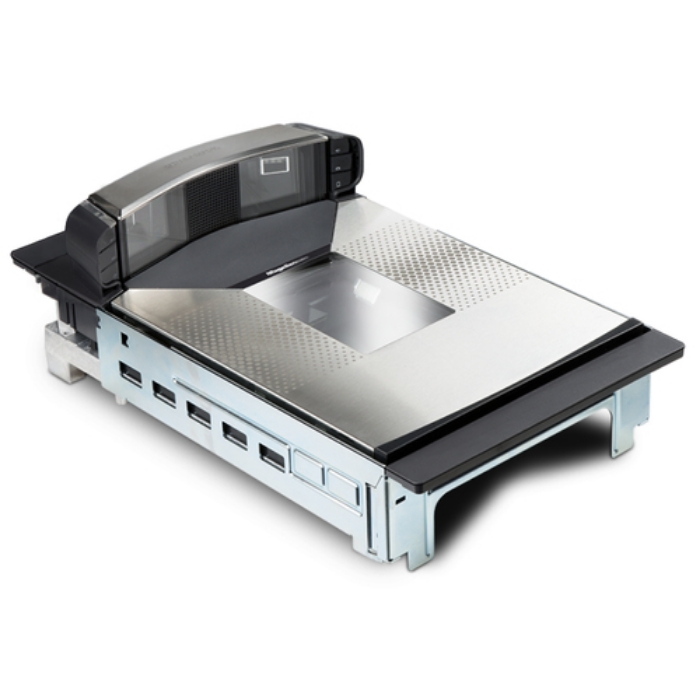

The Magellan 9800i scanner offers state-of-the-art imaging with high reliability designed to provide maximum throughput for both 1D and 2D bar codes. This scanner is the world’s first grocery checkout bar code scanner driven completely by high performance digital imaging.

The striking design improves ergonomics with its lower bonnet height allowing improved placement of POS or Self-Checkout touchscreens, payment terminals and receipt printers. The centered speaker provides audio feedback with customizable WAV files for greater fidelity. The large horizontal window is ergonomically positioned for both standing and seated cashiers.

A unique optional feature is the TDR (Top Down Reader) that delivers seamless scanning of top-marked items. The Magellan 9800i scanner with TDR also has a customer-facing imager allowing shoppers to quickly and easily self-scan digital coupons from mobile devices, paper-based coupons and loyalty cards.

The 9800i now has a new color camera accessory in the TDi (Top Down imager) for our premium 9800i bi-optic scanner and scanner/scale. The 7” height is specifically designed for retail self-checkout applications and optimized for Produce Identification. The TDi is completely integrated with the Magellan 9800i, which means no problems with red illumination interfering with the captured color images. The TDi can also co-locate with a TDR on the same scanner.



Viktiga egenskaper

Datalogic Magellan 9800i. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar Omnidirectional. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Silver. Power source type: AC, Power consumption (typical): 12 W, Input voltage: 100 - 240 V. Width: 292 mm, Depth: 106 mm, Height: 68 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,Micro QR Code,QR Code
Linear (1D) barcodes supported	GS1 DataBar Omnidirectional
Light levels (direct sunlight)	0 - 86080 lx

Connectivity technology	Wired
Standard interfaces	USB

Product colour	Silver
LED indicators	Yes
Buzzer	Yes

Power source type	AC
Power consumption (typical)	12 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz

Width	292 mm
Depth	106 mm
Height	68 mm

Cables included	AC,RS-232

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
