Produktbeskrivning

Achieve more with the smallest presentation scanner

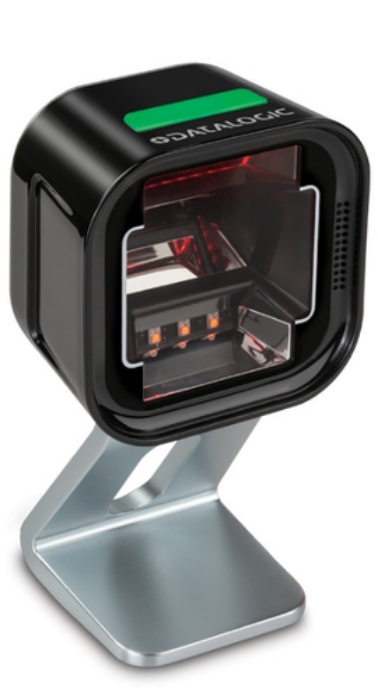

The Magellan 1500i presentation scanner from Datalogic is small in size but packed with performance. It is ideal for a range of applications including retail, point of sale, pharmacy, customer service, self-checkout, and kiosks. Built in a space-saving small physical footprint, the scanner still has a large reading area. Fast sweep scanning of your 1D, 2D and Digimarc barcodes is easy and intuitive, even from poorly printed labels or smartphone screens. The 1500i brings high-end performance to your operation and will adjust the illumination and depth of field to quickly optimize readability. Unlike other presentation scanners on the market, the 1500i performance is unaffected by the plexiglass barriers now required to ensure safety at checkout. This is a top performing scanner that will enable your operators to comfortably work throughout even the longest and toughest of shifts.

Work more ergonomically and simply
The Magellan 1500i is designed with ease of use in mind. The cable is efficiently routed away from the unit to ensure it never gets in your way. The clean lines and choice of colors in either black or white promote an uncluttered look to your workspace. The scanner operates in two modes: Stand Mode for when you require hands-free usage or Presentation Mode scanning for handheld use when an operator picks up the scanner. Stand mode enables high-speed sweep operation of up to 1.5 m/s; and handheld mode is automatically activated via the built-in accelerometer and provides targeted scanning with Datalogic’s Green Spot Technology with good-read feedback. Whichever way you choose to use it, you can count on easy scanning of your products and increased productivity.

Perform safely all day long
Datalogic has equipped the Magellan 1500i with adaptive illumination. This eliminates flicker and reduces brightness when not required, reducing any potential eye strain for your operators. The illumination will automatically adjust and optimize to the barcodes in the field of view. No need for any adjustment when seamlessly moving between printed and mobile barcode scanning. The 100% LED lighting is much safer and more reliable than laser-based scanning. The mixture of near-infrared and deep red lighting ensures both comfort and class-leading performance. The 1500i is the perfect partner when your operators need to work the longest of shifts with ease and comfort.

Combine looks and toughness in one
The Magellan 1500i is an elegant scanner with a small footprint of only 8 x 9 cm. However, the tough industrial design ensures its longevity in all of your operations. With a robust IP52 rated enclosure that supports multiple drops of up to 1.2 m on concrete, you can get many thousands of hours of performance when you need it. What’s more, the many mounting options, including a magnetic mount and wall mount make it easy to position or quickly switch between fixed or handheld scanning. Either way, performance will always be prioritized. Your ability to capture barcodes, including Digimarc, coupons, and images will not be compromised. The Magellan 1500i is the perfect addition to your scanning operation.



Viktiga egenskaper

Datalogic MG1501-10210. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired. Product colour: Black, International Protection (IP) code: IP52, Protection features: Crash proof, Shock resistant. Power source type: DC, Input voltage: 5 V, Power consumption: 500 mA. Weight: 240 g, Width: 80 mm, Height: 90 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,QR Code
Sensor type	LED
Optical sensor resolution (W x H)	1280 x 800 pixels
Light levels (direct sunlight)	0 - 86.1 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-75 - 75 °
Scanner resolution	0.13 mm

Connectivity technology	Wired

Product colour	Black
International Protection (IP) code	IP52
Protection features	Crash proof,Shock resistant
LED indicators	Yes
Buzzer	Yes
Image formats supported	BMP,JPEG
Ambient lighting	Yes
Print contrast	25 %
Country of origin	China
Certification	EN62471 , IEC62471

Power source type	DC
Input voltage	5 V
Power consumption	500 mA

Width	80 mm
Height	90 mm
Weight	240 g

Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C

Compliance certificates	RoHS
Warranty period	3 year(s)

Harmonized System (HS) code	84716070
