Produktbeskrivning

Magellan 1500i

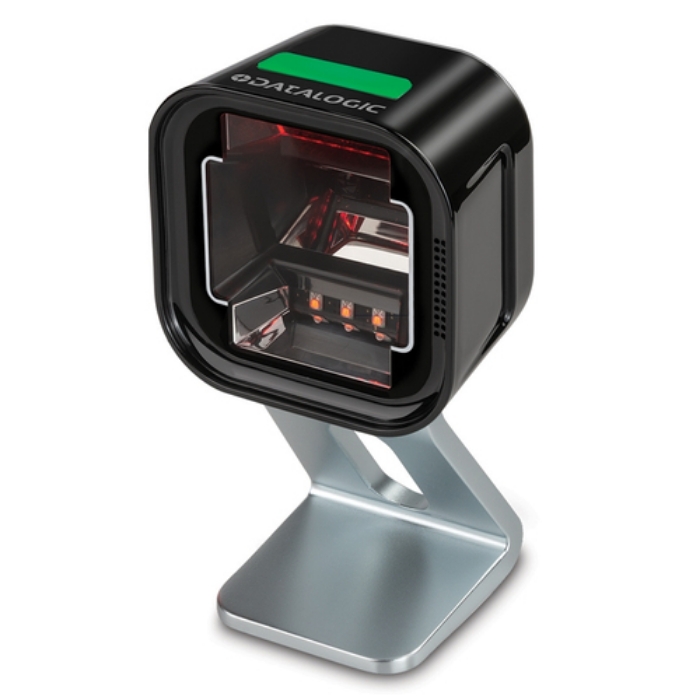

The Magellan 1500i is a high performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i scanner provides outstanding performance on 1D and 2D bar codes from a variety of printed and mobile sources. The addition of Digimarc® Barcodes watermark decoding makes this a uniquely capable scanner in the presentation category.

Datalogic’s Magellan 1500i scanner is a high performance presentation scanner for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i pairs imaging scanning expertise developed for our larger scanners with an innovative, compact design to create the most powerful presentation scanner on the market. The addition of Digimarc Barcode decoding makes the Magellan 1500i scanner uniquely capable of handling both current and future scanning needs.

The Magellan 1500i uses a high performance megapixel sensor and custom optics to create a large reading area capable of reading at distances up to 25 cm and with 1D sweep speeds up to 1.5 m/s. Powerful decoding algorithms provide unmatched performance on a variety of 1D and 2D labels, including hard-to-read, truncated and damaged codes. The large reading area and sweep performance of the Magellan 1500i scanner makes scanning easy and intuitive even for novice users.

The consistent, comfortable illumination enables seamless reading of 1D and 2D bar codes from printed or mobile sources while reducing reflection and eliminating flickering that can cause operator discomfort.

Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. This turns on an LED aimer, while ‘Green Spot’ technology provides good-read confirmation directly on the code. When placed back on the counter, the scanner seamlessly returns to stand mode.

With its small footprint and attractive design, the Magellan 1500i scanner compliments any point of sale or service environment. Classic black and white enclosures pair with a variety of mounting options to make this a versatile, powerful product in an attractive, compact package.



Viktiga egenskaper

Datalogic Magellan 1500i. Type: Fixed bar code reader, Scanner type: 2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, Housing material: Plastic, International Protection (IP) code: IP52. Power source type: USB, Input voltage: 5 V, Power consumption: 500 mA. Weight: 240 g, Width: 60 mm, Depth: 75 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,QR Code
Sensor type	LED
Optical sensor resolution (W x H)	1280 x 800 pixels
Light levels (direct sunlight)	0 - 86.1 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-75 - 75 °
Scanner resolution	0.13 mm

Connectivity technology	Wired
Standard interfaces	USB
USB version	2.0

Product colour	Black
Housing material	Plastic
International Protection (IP) code	IP52
Buzzer	Yes
Image formats supported	BMP,JPEG
Certification	EN62471, IEC62471

Power source type	USB
Input voltage	5 V
Power consumption	500 mA

Width	60 mm
Depth	75 mm
Height	150 mm
Weight	240 g

Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	0 - 40 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
