Produktbeskrivning

Overview

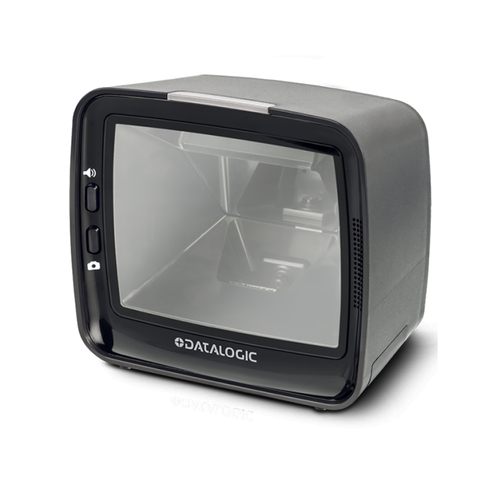

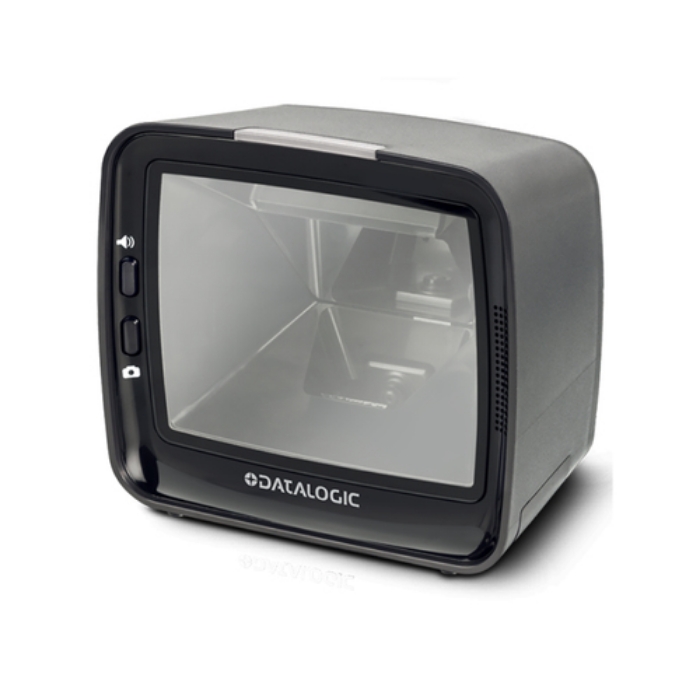

The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.



Viktiga egenskaper

Datalogic Magellan 3450VSi. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, Cable length: 4.5 m. Product colour: Black, Grey, International Protection (IP) code: IP52, Certification: EN62471, IEC62471. Power source type: AC, Power consumption (typical): 3.8 W, Power consumption (standby): 2.6 W. Weight: 600 g, Width: 152 mm, Depth: 137 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,GS1 DataBar Expanded Stacked,GS1 DataBar Stacked Omnidirectional,MicroPDF417,PDF417
Sensor type	Laser
Working distance	140 mm
Light levels (direct sunlight)	0 - 86100 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-75 - 75 °

Connectivity technology	Wired
Standard interfaces	RS-232
Cable length	4.5 m

Product colour	Black,Grey
International Protection (IP) code	IP52
LED indicators	Yes
Buzzer	Yes
Certification	EN62471, IEC62471

Power source type	AC
Power consumption (typical)	3.8 W
Power consumption (standby)	2.6 W
Input voltage	100-240 V
Input frequency	50-60 Hz

Width	152 mm
Depth	137 mm
Height	94 mm
Weight	600 g

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
