Produktbeskrivning

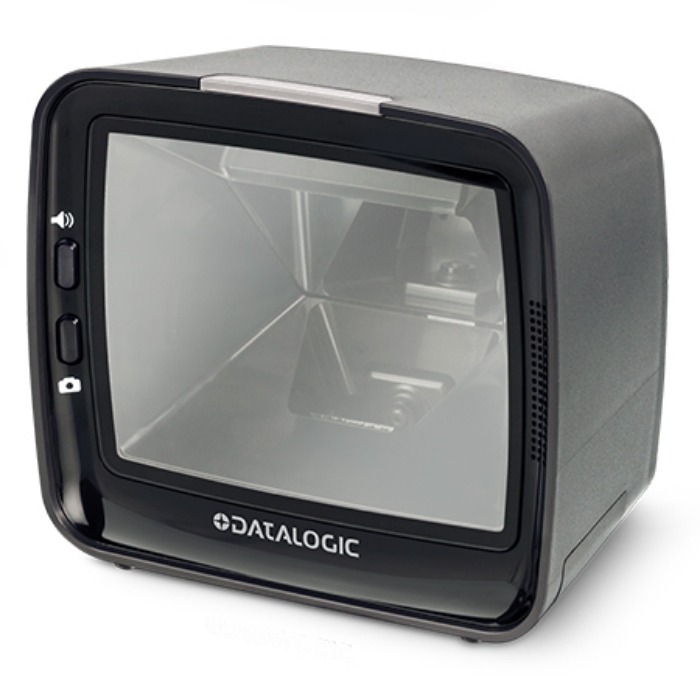

Magellan 3450VSi

The Magellan 3450VSi scanner offers class leading performance on 1D and 2D codes, unmatched reliability and versatility, all in a compact size.

Features

- Class leading performance on 1D, 2D, and Digimarc Barcodes whether printed or displayed on smart phones maximizes productivity
- Object Sense illumination control automatically optimizes LED levels for improved user ergonomics and lower power consumption
- Multiple interfaces in each unit including RS-232, OEM USB, USB Keyboard and USB COM
- The FIRST single plane scanner available to support Digimarc Barcode digital watermarks which increase productivity by up to 30% while improving user ergonomics
- Flexible enterprise management with the on board Micro-SD card slot, Micro-B USB Service port or using popular remote management software applications
- Unmatched reliability for Retail with quality materials, excellent sealing, and an all Solid-State design

Overview

The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.



Viktiga egenskaper

Datalogic Magellan 3450VSi. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, Keyboard wedge, Cable length: 4.5 m. Product colour: Black, International Protection (IP) code: IP52. Power source type: AC, Power consumption (typical): 3 W, Power consumption (standby): 2.6 W. Weight: 600 g, Width: 152 mm, Depth: 94 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	LED
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,QR Code
Read rate (max)	39000000 reads/s
Light levels (direct sunlight)	0 - 86000 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-75 - 75 °

Connectivity technology	Wired
Standard interfaces	USB,Keyboard wedge
Cable length	4.5 m

Product colour	Black
International Protection (IP) code	IP52

Power source type	AC
Power consumption (typical)	3 W
Power consumption (standby)	2.6 W
Input voltage	100-240 V
Input frequency	50-60 Hz

Width	152 mm
Depth	94 mm
Height	137 mm
Weight	600 g

Cables included	AC,USB

Operating relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
