Produktbeskrivning

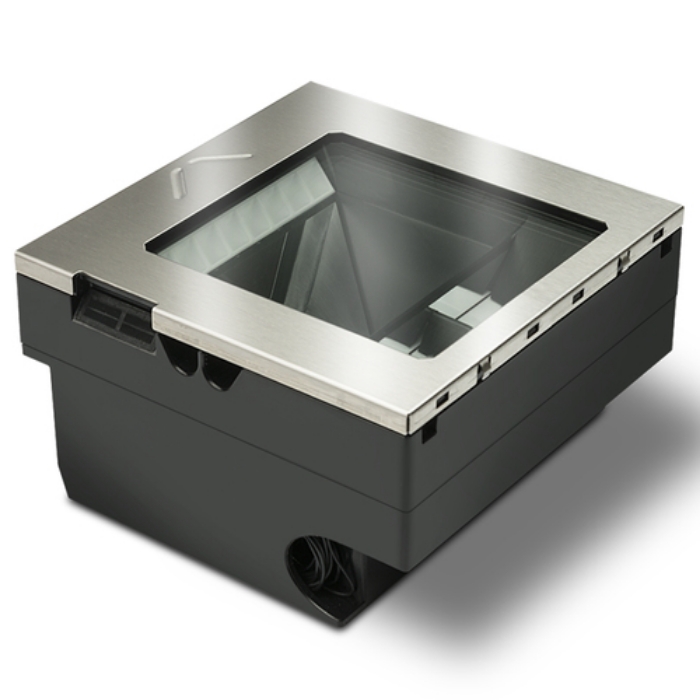

IN-COUNTER HIGH PERFORMANCE BAR CODE READER
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.

With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.

ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper couponsm while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.



Viktiga egenskaper

Datalogic Magellan 3510HSi. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG. Power source type: DC, USB, Power consumption (typical): 2.1 W, Power consumption (standby): 1.25 W. Weight: 980 g, Width: 152 mm, Depth: 152 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	GS1 DataBar
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,QR Code,WaterCode
Optical sensor resolution (W x H)	1280 x 800 pixels
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Yaw reading angle	-75 - 75 °

Connectivity technology	Wired
Standard interfaces	RS-232,USB
USB 2.0 ports quantity	2

Product colour	Black
International Protection (IP) code	IP52
Buzzer	Yes
Image formats supported	BMP,JPEG
Ambient lighting	Yes
Print contrast	25 %
Compatible memory cards	MicroSD (TransFlash)

Power source type	DC,USB
Power consumption (typical)	2.1 W
Power consumption (standby)	1.25 W
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz

Width	152 mm
Depth	152 mm
Height	87 mm
Weight	980 g

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95 %

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
