Produktbeskrivning

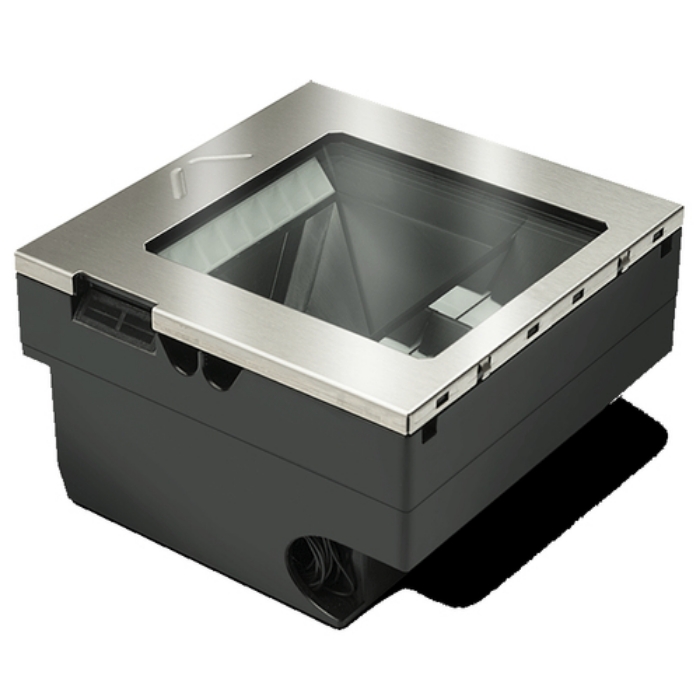

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners.
Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.
Viktiga egenskaper
Datalogic Magellan 3550HSi. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, Stainless steel, International Protection (IP) code: IP52, Image formats supported: BMP, JPEG. Power source type: DC, Power consumption (typical): 3 W, Power consumption (standby): 4 W. Weight: 980 g, Width: 152 mm, Depth: 87 mm
Teknisk specifikation
Scanning
| Type | Built-in bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Data Matrix,QR Code |
|---|
| Sensor type | Laser |
|---|
| Optical sensor resolution (W x H) | 1280 x 1024 pixels |
|---|
| Working distance | 102 mm |
|---|
| Light levels (direct sunlight) | 0 - 86100 lx |
|---|
| Tilt reading angle | 0 - 360 ° |
|---|
| Pitch reading angle | -65 - 65 ° |
|---|
| Yaw reading angle | -75 - 75 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | RS-232,USB |
|---|
Performance
| Product colour | Black,Stainless steel |
|---|
| International Protection (IP) code | IP52 |
|---|
| Built-in display | No |
|---|
| Image formats supported | BMP,JPEG |
|---|
| Ambient lighting | Yes |
|---|
| Print contrast | 25 % |
|---|
| Compatible memory cards | MicroSD (TransFlash) |
|---|
Power
| Power source type | DC |
|---|
| Power consumption (typical) | 3 W |
|---|
| Power consumption (standby) | 4 W |
|---|
| Battery voltage | 12 V |
|---|
| Input voltage | 100 - 240 V |
|---|
| Input frequency | 50/60 Hz |
|---|
Weight & dimensions
| Width | 152 mm |
|---|
| Depth | 87 mm |
|---|
| Height | 152 mm |
|---|
| Weight | 980 g |
|---|
Operational conditions
| Operating temperature (T-T) | 10 - 40 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
