Produktbeskrivning

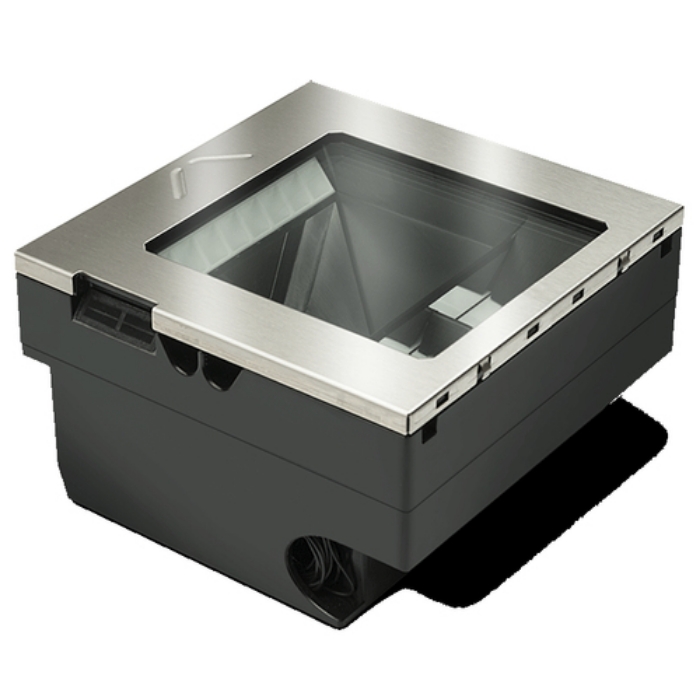

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes.  It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners.
Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read.  The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users.  This ensures a comfortable work environment and all day productivity.  The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.



Viktiga egenskaper

Datalogic Magellan 3550HSi. Type: Built-in bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Cable length: 4.6 m. Product colour: Black, Stainless steel, International Protection (IP) code: IP52, Print contrast: 25%. Power source type: DC, Power consumption (typical): 3 W, Power consumption (standby): 4 W. Weight: 980 g, Width: 152 mm, Depth: 87 mm



Teknisk specifikation

Type	Built-in bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,PDF417
Sensor type	Laser
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,QR Code
Optical sensor resolution (W x H)	1280 x 1024 pixels
Working distance	102 mm
Read rate (max)	39000000 reads/s
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Yaw reading angle	-75 - 75 °

Connectivity technology	Wired
Standard interfaces	RS-232,USB
Cable length	4.6 m

Product colour	Black,Stainless steel
International Protection (IP) code	IP52
Built-in display	No
Ambient lighting	Yes
Print contrast	25 %
Compatible memory cards	MicroSD (TransFlash)

Power source type	DC
Power consumption (typical)	3 W
Power consumption (standby)	4 W
Input voltage	12 V
Input frequency	50/60 Hz
AC adapter output voltage	100 - 240 V

Width	152 mm
Depth	87 mm
Height	152 mm
Weight	980 g

Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %

Warranty period	3 year(s)

Harmonized System (HS) code	84716070
