Produktbeskrivning

Overview

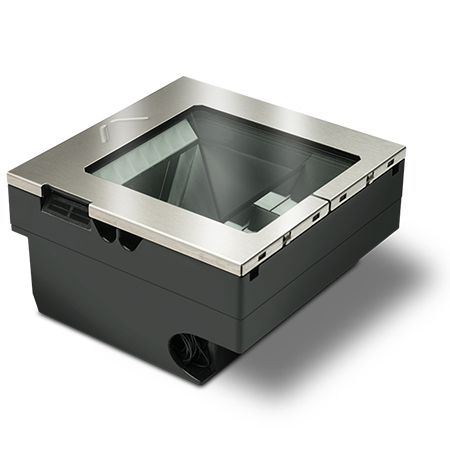

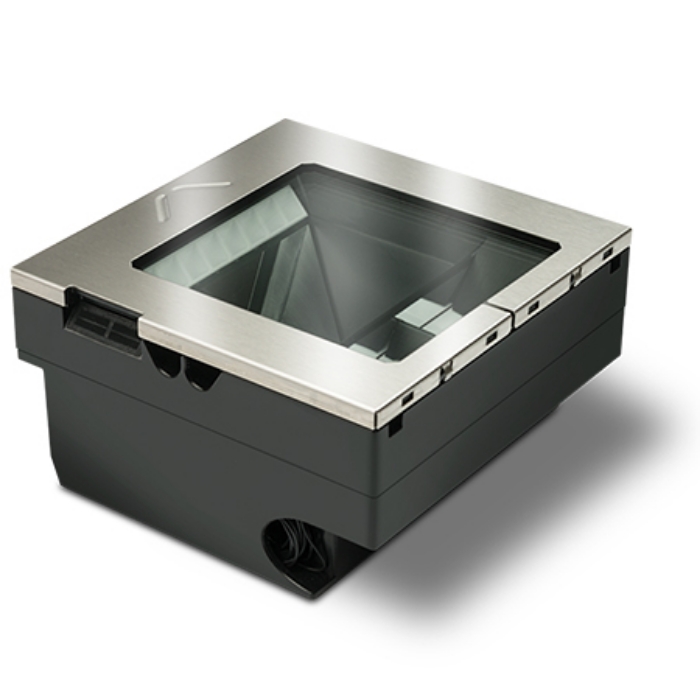

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.



Viktiga egenskaper

Datalogic Magellan 3550HSi. Type: Fixed bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar Expanded. Connectivity technology: Wired. Product colour: Black, Silver, International Protection (IP) code: IP52, Certification: EN62471, IEC62471. Power source type: AC, Power consumption (typical): 4 W, Input voltage: 100-240 V. Weight: 980 g, Width: 152 mm, Depth: 152 mm



Teknisk specifikation

Type	Fixed bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	GS1 DataBar Expanded
2D (matrix & stacked) barcodes supported	Aztec Code,Composite Codes,Data Matrix,GS1 DataBar Stacked Omnidirectional,MaxiCode,MicroPDF417,PDF417,QR Code
Working distance	102 mm
Light levels (direct sunlight)	0 - 86100 lx

Connectivity technology	Wired

Product colour	Black,Silver
International Protection (IP) code	IP52
LED indicators	Yes
Buzzer	Yes
Certification	EN62471, IEC62471

Power source type	AC
Power consumption (typical)	4 W
Input voltage	100-240 V
Input frequency	50-60 Hz

Width	152 mm
Depth	152 mm
Height	87 mm
Weight	980 g

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
