Produktbeskrivning

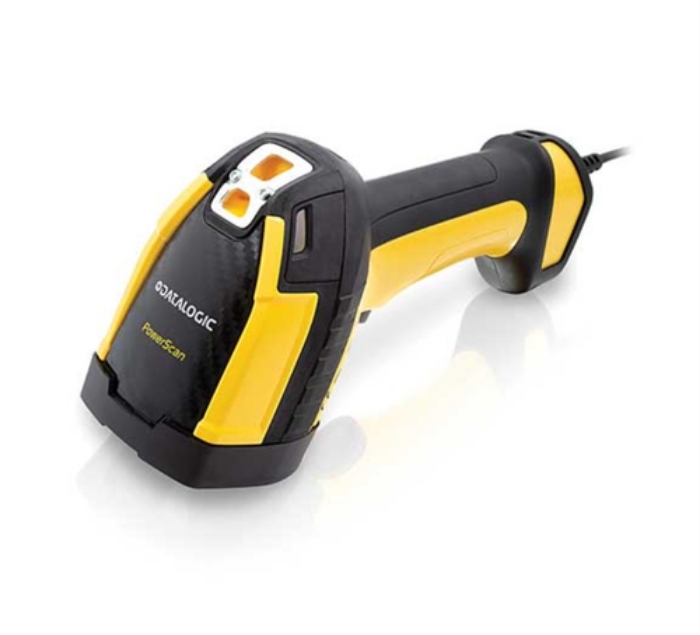

PowerScan PD9630-HP, High Performance, USB Kit (Kit includes Scanner and USB Cable CAB-553)

Ultra-rugged with new balanced ergonomics!
The PowerScan family of bar code readers are the ultimate industrial
handheld scanners designed and constructed to withstand the
toughest environmental conditions. The PowerScan PD9630 imagers
have an ultra-rugged design, an ergonomic shape with well-balanced
weight to reduce operator stress during daily activities and an intuitive
aiming system, allowing the highest first-pass reading rate while
reducing unnatural wrist movement.

Three optic options to fulfill any customer need
The PowerScan PD9630 area imagers are available in three different
optics, to satisfy any customer need. The Standard Range optic is
ideal for most of the applications requiring barcode reading at intuitive
distance; the High Performance optic adds the capability to decode
high density barcodes together with an increased depth of field on
standard 1D/2D codes; the Document Capture model is thought for
Wide Angle code reading and Document Capture applications.

The best feedback to the operator
The PD9630 area imagers also feature Datalogic’s exclusive 3 Green
Lights (3GL™) for superior good-read feedback together with a loud
beeper and vibration. The ‘Green Spot’ technology directly on the
code and dual Good Read LEDs increase visibility at any angle. All
models have multi-interface capabilities featuring the most popular
interfaces: RS-232, USB and offer an optional Ethernet for standard or
industrial uses.

Datalogic’s Motionix™ motion-sensing technology detects the natural
actions of the operator to automatically switch the scanner into the
desired scanning mode (handheld or presentation scanning).



Viktiga egenskaper

Datalogic PD9630-HPK1. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: China Post, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, Yellow, International Protection (IP) code: IP65, IP67, Protection features: Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water.... Power source type: USB, Input voltage: 5 - 30 V, Power consumption: 280 mA. Weight: 318 g, Width: 79 mm, Depth: 140 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Linear (1D) barcodes supported	China Post,Code 128,EAN 128,EAN 2,EAN 5,EAN-13,EAN-8,GS1 DataBar,UPC-A,UPC-E
Optical sensor resolution (W x H)	1280 x 800 pixels
Working distance	200 mm
Light levels (direct sunlight)	0 - 100000 lx
Wavelength	630 nm
Tilt reading angle	0 - 360 °
Pitch reading angle	-52 - 52 °
Yaw reading angle	-52 - 52 °

Connectivity technology	Wired
Standard interfaces	USB

Product colour	Black,Yellow
International Protection (IP) code	IP65, IP67
Protection features	Dirt resistant,Drop proof,Dust resistant,Electrostatic Discharge (ESD) protection,Water resistant
LED indicators	Yes
Buzzer	Yes
Print contrast	15 %
Vibration function	Yes

Power source type	USB
Input voltage	5 - 30 V
Power consumption	280 mA

Width	79 mm
Depth	140 mm
Height	190 mm
Weight	318 g

Cables included	USB

Operating relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C

Compliance certificates	REACH,RoHS

Harmonized System (HS) code	84716070
