Produktbeskrivning

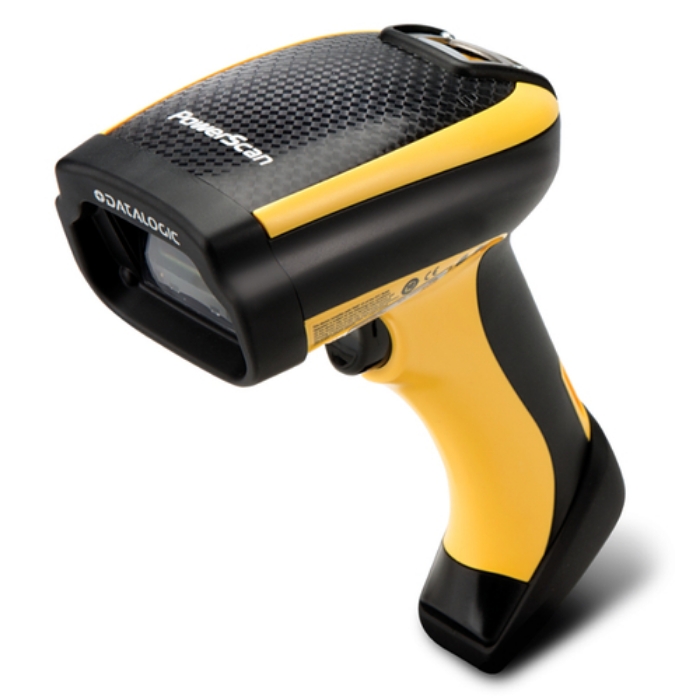

PowerScan PD9130

Overview

The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager. The PD9130 imager features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle. The PD9130 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations. All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.



Viktiga egenskaper

Datalogic POWERSCAN PD9100. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Black, Yellow, International Protection (IP) code: IP65, Certification: IEC 62471. Input voltage: 30 V. Weight: 340 g, Width: 110 mm, Depth: 74 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Sensor type	LED
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,Plessey
Working distance	6100 mm
Tilt reading angle	-45 - 45 °
Pitch reading angle	-75 - 75 °
Yaw reading angle	-70 - 70 °

Connectivity technology	Wired
Standard interfaces	RS-232,USB,Keyboard wedge

Product colour	Black,Yellow
International Protection (IP) code	IP65
Certification	IEC 62471

Input voltage	30 V

Width	110 mm
Depth	74 mm
Height	212 mm
Weight	340 g

Cables included	No

Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
