Produktbeskrivning

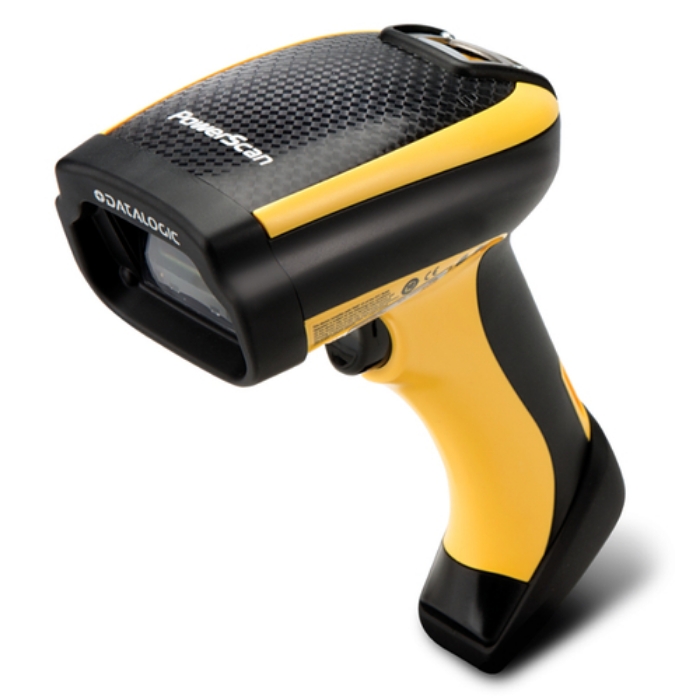

The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
The PD9130 imager features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PD9130 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Viktiga egenskaper
Datalogic PowerScan PD9130. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Black, Yellow, International Protection (IP) code: IP65, Protection features: Shock resistant. Power source type: DC, Input voltage: 4.5 - 30 V, Power consumption: 440 mA. Weight: 340 g, Width: 212 mm, Depth: 110 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D |
|---|
| Sensor type | LED |
|---|
| 2D (matrix & stacked) barcodes supported | Not supported |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,MSI,Plessey,U.P.C. |
|---|
| Tilt reading angle | -45 - 45 ° |
|---|
| Pitch reading angle | -75 - 75 ° |
|---|
| Yaw reading angle | -70 - 70 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Standard interfaces | RS-232,USB,Keyboard wedge |
|---|
Performance
| Product colour | Black,Yellow |
|---|
| International Protection (IP) code | IP65 |
|---|
| Protection features | Shock resistant |
|---|
Power
| Power source type | DC |
|---|
| Input voltage | 4.5 - 30 V |
|---|
| Power consumption | 440 mA |
|---|
Weight & dimensions
| Width | 212 mm |
|---|
| Depth | 110 mm |
|---|
| Height | 74 mm |
|---|
| Weight | 340 g |
|---|
Packaging data
| Cables included | RS-232 |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
