Produktbeskrivning

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

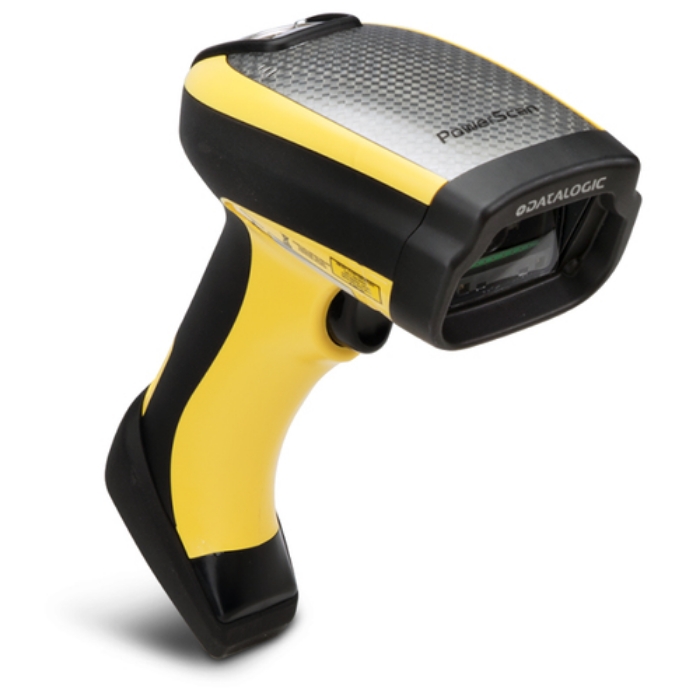

The PowerScan™ PD9530-DPM Evo reader is a rugged handheld area imager specifically addressed for DPM applications. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the type of DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.

The intuitive aiming system provides the highest first-pass reading rate. Additionally, the PowerScan 9530-DPM Evo area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users’ eyes.

Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.



Viktiga egenskaper

Datalogic PowerScan PD9531. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Photo diode. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: Black, Yellow, International Protection (IP) code: IP65. Power source type: DC, Input voltage: 5 V. Weight: 330 g, Width: 74 mm, Depth: 110 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Aztec Code,Data Matrix,MaxiCode,Micro QR Code,QR Code
Sensor type	Photo diode
Optical sensor resolution (W x H)	864 x 544 pixels
Light levels (direct sunlight)	0 - 100000 lx
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 40 °
Yaw reading angle	0 - 40 °

Connectivity technology	Wired
Standard interfaces	Keyboard wedge,RS-232,USB

Product colour	Black,Yellow
International Protection (IP) code	IP65

Power source type	DC
Input voltage	5 V

Width	74 mm
Depth	110 mm
Height	212 mm
Weight	330 g

Cables included	USB

Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
