Produktbeskrivning

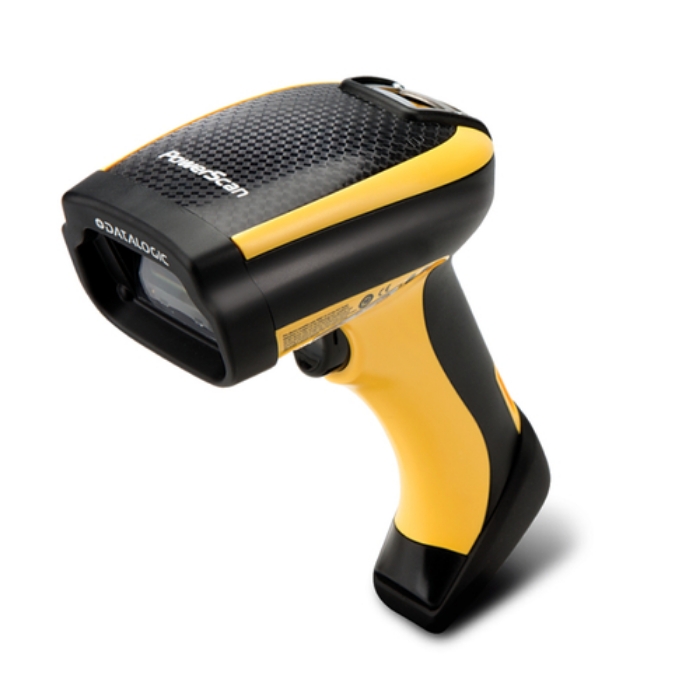

The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic’s STAR Cordless System narrow band radio. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Viktiga egenskaper
Datalogic PowerScan PM9100. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wired & Wireless, Standard interfaces: USB, Wireless range: 50 m. Product colour: Black, Yellow, International Protection (IP) code: IP65, Protection features: Shock resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2150 mAh. Weight: 405 g, Width: 212 mm, Depth: 110 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D |
|---|
| 2D (matrix & stacked) barcodes supported | Not supported |
|---|
| Linear (1D) barcodes supported | Codabar,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,EAN-13,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,Interleaved 2 of 5,U.P.C. |
|---|
| Sensor type | LED |
|---|
| Tilt reading angle | -45 - 45 ° |
|---|
| Pitch reading angle | -75 - 75 ° |
|---|
| Yaw reading angle | -70 - 70 ° |
|---|
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|
| Standard interfaces | USB |
|---|
| Wireless range | 50 m |
|---|
| Operating frequency | 433 MHz |
|---|
Performance
| Product colour | Black,Yellow |
|---|
| International Protection (IP) code | IP65 |
|---|
| Protection features | Shock resistant |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 2150 mAh |
|---|
| Number of reads per charge | 50000 |
|---|
| Battery life | 4 h |
|---|
| Input voltage | 10 - 30 V |
|---|
| Power consumption | 500 mA |
|---|
Weight & dimensions
| Width | 212 mm |
|---|
| Depth | 110 mm |
|---|
| Height | 74 mm |
|---|
| Weight | 405 g |
|---|
Packaging data
| Cables included | USB |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating temperature (T-T) | -20 - 50 °C |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
