Produktbeskrivning

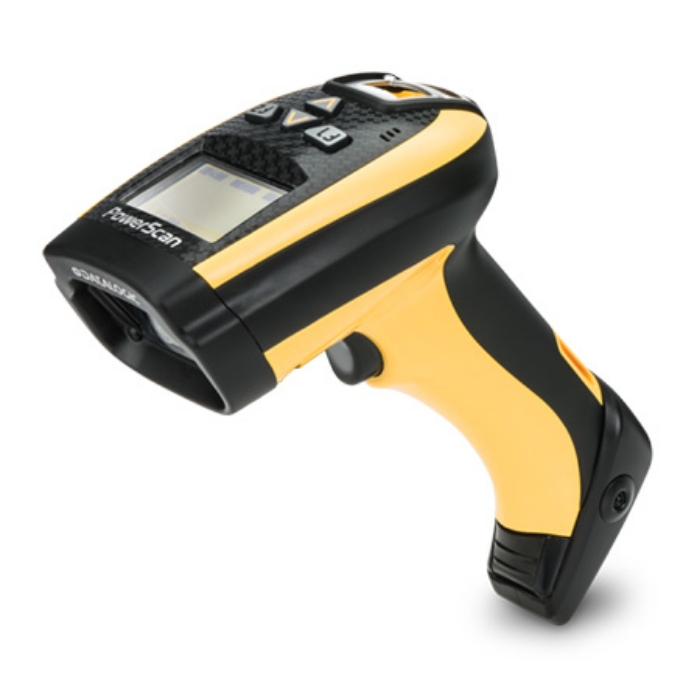

The PowerScan™ PM9300 series includes different models able to satisfy all customers’ needs; the PM9300 is the basic cordless model, the PM9300-D intermediate model includes a display and 4-key keypad, and the ultimate PM9300-DK model features a display with a full 16-key keyboard. The PM9300-DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal.

Narrow band radio communications with Datalogic’s STAR Cordless System™ 2.0 provides the key to increased productivity and flexibility in the workplace. It offers scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations.

The PM9300 readers feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented ‘Green Spot’ technology provides visual confirmation directly on the code and dual Good Read LEDs on the top and back of the cap add increased visibility at any angle.



Viktiga egenskaper

Datalogic PowerScan PM9300. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wired & Wireless, Standard interfaces: USB, RS-232, RS-485, Keyboard wedge, Wireless range: 400 m. Product colour: Black, Yellow, International Protection (IP) code: IP65, Protection features: Shock resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2150 mAh. Weight: 435 g, Width: 212 mm, Depth: 110 mm



Teknisk specifikation

Type	Handheld bar code reader
Scanner type	1D
Linear (1D) barcodes supported	Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,Interleaved 2 of 5,MSI,Plessey,U.P.C.
Sensor type	Laser
Read rate (max)	104 reads/s
Wavelength	680 nm
Tilt reading angle	-35 - 35 °
Pitch reading angle	-40 - 40 °
Yaw reading angle	-65 - 65 °
Scanner resolution	0.076 mm

Connectivity technology	Wired & Wireless
Standard interfaces	USB,RS-232,RS-485,Keyboard wedge
Wireless range	400 m
Operating frequency	910 MHz

Product colour	Black,Yellow
International Protection (IP) code	IP65
Protection features	Shock resistant
Keys quantity	4 keys
LED indicators	Yes
Buzzer	Yes
Built-in display	Yes
Display resolution	48 x 132 pixels
Backlight display	Yes
Certification	CDRH Class II IEC 60825-1 Class 2

Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	2150 mAh
Number of reads per charge	50000
Battery life	10 h
Charging time	4 h
Input voltage	10 - 30 V
Power consumption	500 mA

Width	212 mm
Depth	110 mm
Height	74 mm
Weight	435 g

Cables included	No

Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C

Compliance certificates	RoHS

Harmonized System (HS) code	84716070
