Produktbeskrivning

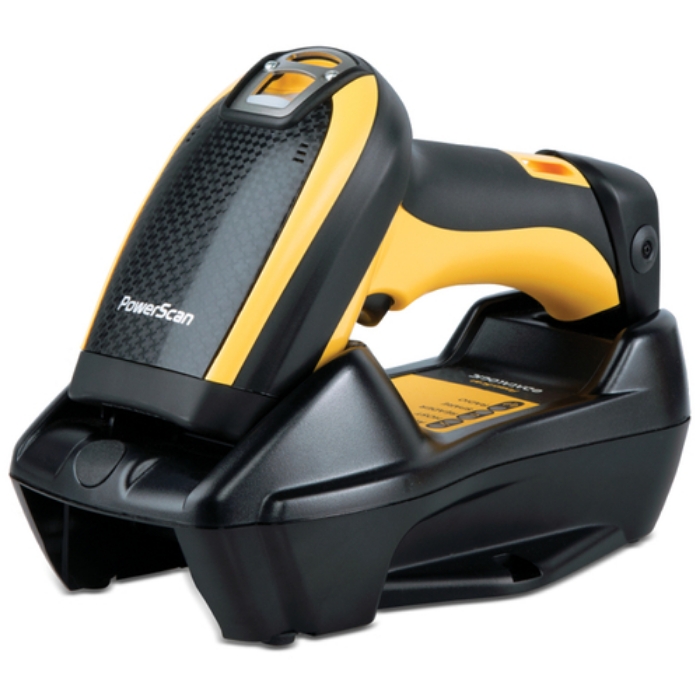

The PowerScan PBT9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features standard Bluetooth wireless technology. This linear imager introduces Datalogic’s innovative new scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
The PBT9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PBT9100 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Viktiga egenskaper
Datalogic PowerScan PBT9100. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Standard interfaces: USB, Wireless range: 100 m, Bluetooth version: 3.0+HS. Product colour: Black, Yellow, International Protection (IP) code: IP65, Protection features: Shock resistant. Power source type: Battery, Battery life: 4 h, Input voltage: 10 - 30 V. Weight: 405 g, Width: 212 mm, Depth: 110 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D |
|---|
| 2D (matrix & stacked) barcodes supported | Not supported |
|---|
| Sensor type | LED |
|---|
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 32,Code 39,Code 93,EAN 2,EAN 5,EAN-13,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,Plessey,U.P.C. |
|---|
| Tilt reading angle | -45 - 45 ° |
|---|
| Pitch reading angle | -75 - 75 ° |
|---|
| Yaw reading angle | -70 - 70 ° |
|---|
Ports & interfaces
| Standard interfaces | USB |
|---|
| Wireless range | 100 m |
|---|
| Bluetooth version | 3.0+HS |
|---|
Performance
| Product colour | Black,Yellow |
|---|
| International Protection (IP) code | IP65 |
|---|
| Protection features | Shock resistant |
|---|
| LED indicators | Yes |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 2150 mAh |
|---|
| Number of reads per charge | 50000 |
|---|
| Battery life | 4 h |
|---|
| Input voltage | 10 - 30 V |
|---|
| Power consumption | 500 mA |
|---|
Weight & dimensions
| Width | 212 mm |
|---|
| Depth | 110 mm |
|---|
| Height | 74 mm |
|---|
| Base dimensions (WxDxH) | 240 x 108 x 95 mm |
|---|
| Base weight | 380 g |
|---|
| Weight | 405 g |
|---|
Packaging data
| Cables included | USB |
|---|
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
